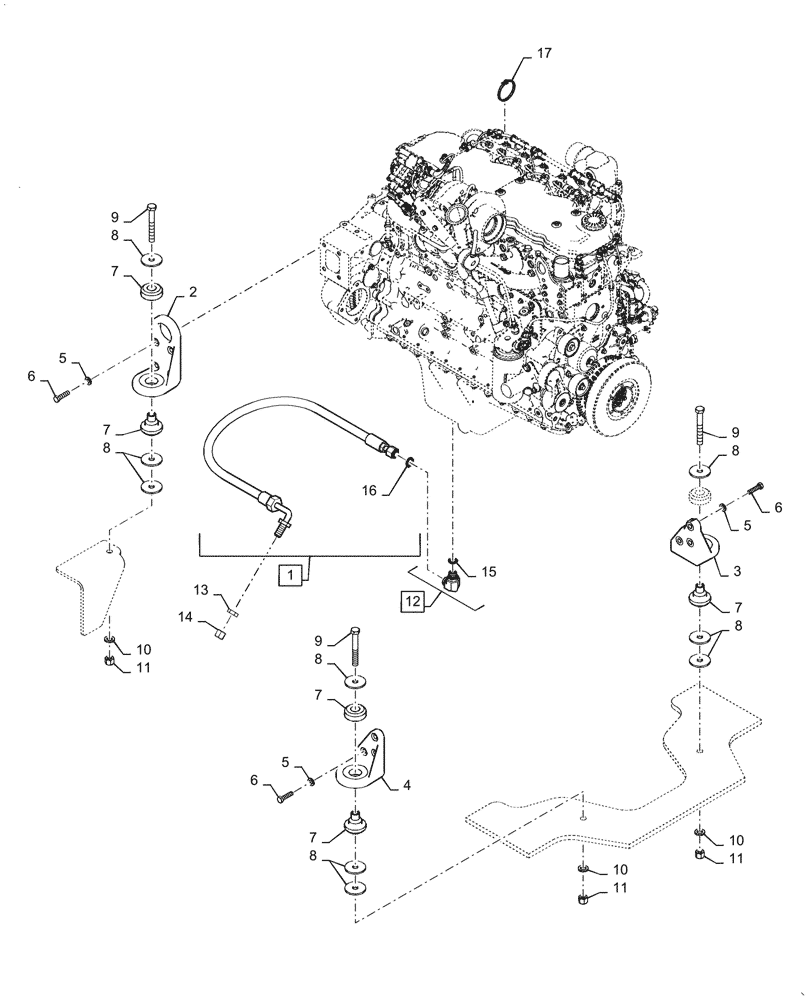

Запчасти Case 921G (10.001.020[01]) - ENGINE MOUNTING (10) - ENGINE

1

397437A1

FLEXIBLE HOSE

Remote Oil Drain, Incl 16

1шт.

2

8602302

ENGINE MOUNT

Flywheel Housing

2шт.

3

47386946

ENGINE MOUNT

Right Rear

1шт.

4

8602304

ENGINE MOUNT

Rear Left

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

6

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

7

361811A1

ISOLATOR

Rear

4шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

12шт.

9

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

832-10416

NUT,M16 x 2, Cl 8

4шт.

12

87426452

FITTING

Incl, 15

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

14

218-756

CAP,37 Degree, 7/8"-14

1шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

Engine Harness, to Fuel Rail

1шт.
