(55.518.030) - VAR - 734065 - REAR WINDSHIELD WIPER INSTALLATION

Запчасти Case 921G (55.518.030) - VAR - 734065 - REAR WINDSHIELD WIPER INSTALLATION (55) - ELECTRICAL SYSTEMS

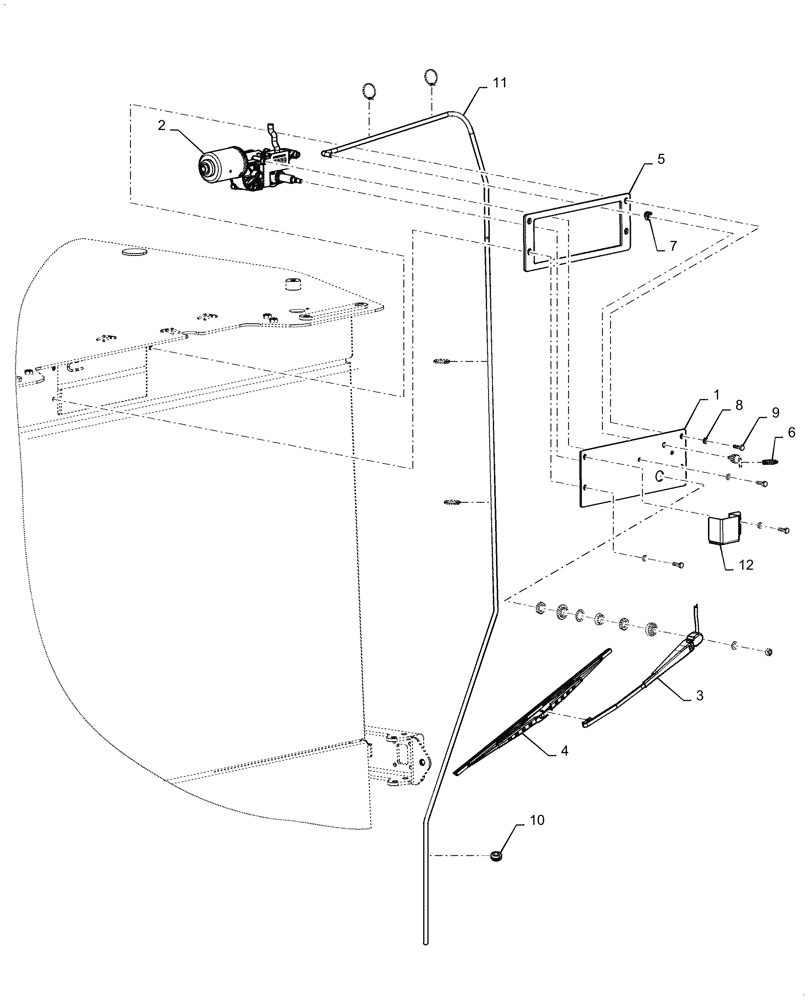

Схема запчастей Case 921G - (55.518.030) - VAR - 734065 - REAR WINDSHIELD WIPER INSTALLATION (55) - ELECTRICAL SYSTEMS
7
10
12
1
4
8
9
3
11
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47638258

PLATE

Motor Mounting

1шт.

2

47743754

MOTOR-PUMP

1шт.

3

48077935

WIPER ARM

1шт.

4

82022857

WIPER BLADE,500mm L

1шт.

5

47870213

SEAL

Rear Wiper Plate

1шт.

6

869707C1

STRAP,368.3mm L

6шт.

7

84477330

HOSE CLAMP,8.97mm - 10.11mm

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

9

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

6шт.

10

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

Rubber

1шт.

11

48057565

HOSE

Washer

1шт.
