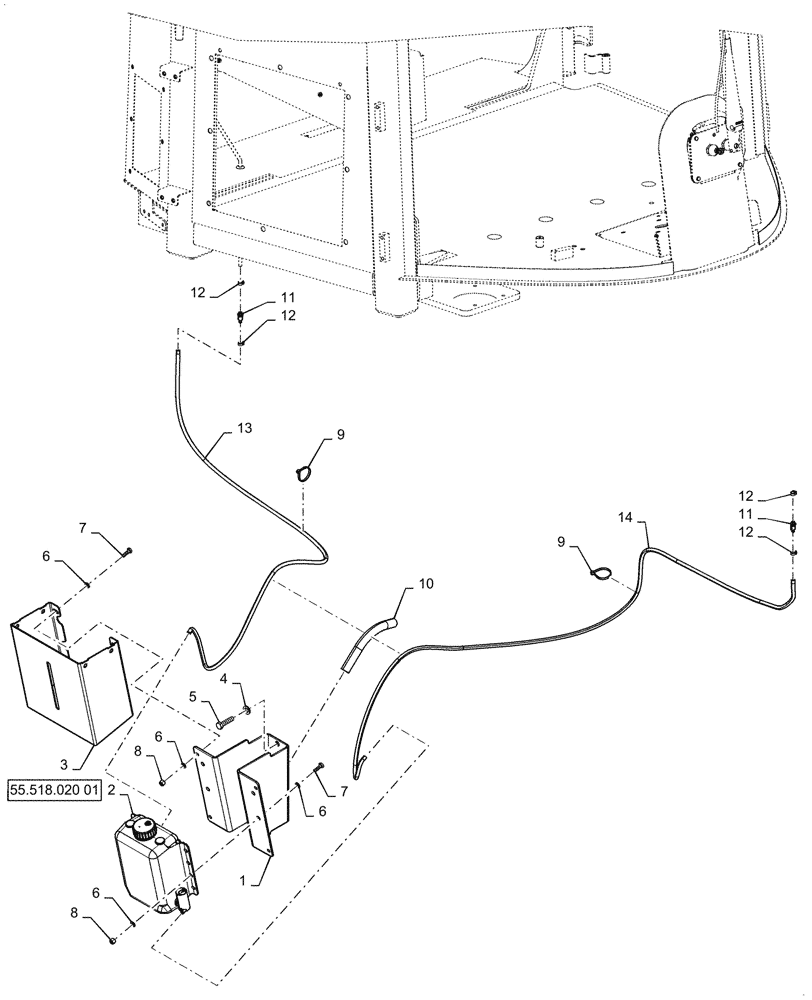

Запчасти Case 921G (55.518.020) - WASHER BOTTLE INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47410951

BRACKET

1шт.

2

NSS

NOT SOLD SEPARAT

Follow Figure Link to 55.518.020 01 to Order Components

1шт.

3

47407568

COVER

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

10

84228376

CONDUIT

1шт.

11

84037530

VALVE

2шт.

12

84477330

HOSE CLAMP,8.97mm - 10.11mm

4шт.

13

324468A1

HOSE

1шт.

14

384138A1

HOSE,4.77 mm ID x 102.00 mm

1шт.
