Запчасти Case 921G (55.510.030[06]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

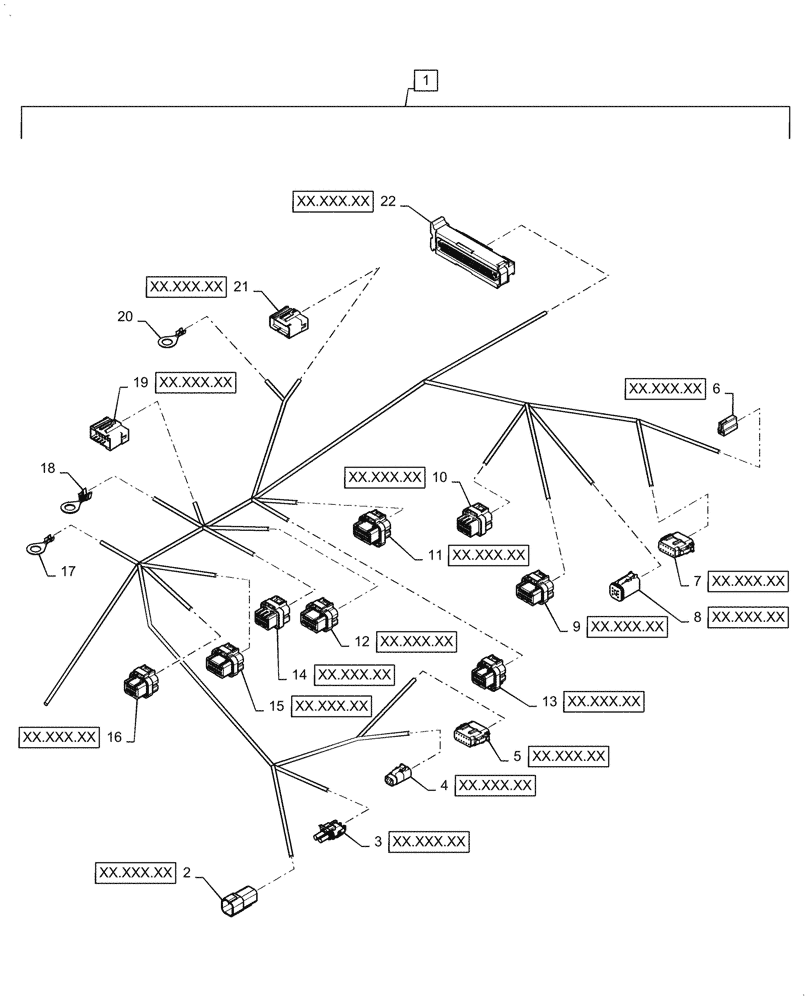

Схема запчастей Case 921G - (55.510.030[06]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
6
xx.xxx.xx
xx.xxx.xx
3
18
10
xx.xxx.xx
xx.xxx.xx
14
xx.xxx.xx
xx.xxx.xx
11
8
15
16
7
xx.xxx.xx
4
xx.xxx.xx
xx.xxx.xx
19
2
xx.xxx.xx
1
17
xx.xxx.xx
xx.xxx.xx
xx.xxx.xx
12
xx.xxx.xx
22
xx.xxx.xx
9
21
5
13
xx.xxx.xx
xx.xxx.xx
20
xx.xxx.xx

Артикул

Название

Примечание

Количество

1

47971221

WIRE HARNESS

Main Cab, Incl 2 - 22

1шт.

2

87694152

CONTACT HOUSING,Male, 6 Pole

Cab to RH Arm Rest

1шт.

2

84127679

TERMINAL

Cavities, 1 - 5

5шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity Plug, Cavity 6

1шт.

2

84256998

WIRE CONNECTOR

Shell

1шт.

2

84322203

CLIP

Mounting Clip

1шт.

2

87694147

WEDGE,Locking, Green

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Seat Compressor

1шт.

3

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

2шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

1шт.

4

87696138

ELEC CONNECTOR

Cab to Left JSS

1шт.

4

82017048

CABLE TERMINAL

2шт.

4

47737236

ELEC CONNECTOR

Boot

1шт.

4

87696149

ELEC CONNECTOR

Wedge Lock

1шт.

4

87700105

ELEC CONNECTOR

Shell

1шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Cab to JSS LHt Armrest

1шт.

5

82017048

CABLE TERMINAL

12шт.

5

47685336

ELEC CONNECTOR

1шт.

5

87705198

WEDGE

1шт.

6

84015523

WIRE CONNECTOR,Female

Cigar Lighter

1шт.

6

87708753

TERMINAL

2шт.

7

87700156

CONTACT HOUSING,Female, 12 Pole

Telematics

1шт.

7

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Cavities, 1 - 4, 6, 7, 12

7шт.

7

84807680

PLUG

Cavities, 5, 8 - 11

5шт.

7

87705198

WEDGE

1шт.

8

87694112

ELEC CONNECTOR,Female, 6 Pole

21v to 12v Power Converter

1шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1 - 3, 5, 6,

5шт.

8

84068583

PLUG,12 - 16 Ga, White

Cavity, 4

1шт.

8

84391167

CAP

1шт.

8

87694150

LOCKING TAB,Wedge Lock

1шт.

9

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM

1шт.

9

84529032

TERMINAL

Cavities, 2, 8, 9, 16, 24, 30, 32, 34

8шт.

9

82017049

PLUG

Cavities, 1, 3 - 7, 10 - 15, 17 - 23, 25 - 29, 31, 33

26шт.

10

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM

1шт.

10

82017048

CABLE TERMINAL

12шт.

10

82017049

PLUG

14шт.

11

84130760

ELEC CONNECTOR,Female, 34 Cavities

UCM

1шт.

11

82017048

CABLE TERMINAL

20шт.

11

82017049

PLUG

14шт.

12

84130757

ELEC CONNECTOR,Female, 26 Cavities

UCM

1шт.

12

82017048

CABLE TERMINAL

7шт.

12

82017049

PLUG

19шт.

13

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

UCM

1шт.

13

82017048

CABLE TERMINAL

8шт.

13

82017049

PLUG

25шт.

14

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM

1шт.

14

82017048

CABLE TERMINAL

13шт.

14

82017049

PLUG

13шт.

15

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

UCM

1шт.

15

82017048

CABLE TERMINAL

12шт.

15

82017049

PLUG

22шт.

16

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

UCM

1шт.

16

82017048

CABLE TERMINAL

17шт.

16

82017049

PLUG

9шт.

17

84426139

TERMINAL

Cab Ground

1шт.

18

84140737

TERMINAL CONNECTOR

UCM Ground

1шт.

19

87352746

ELEC CONNECTOR

Splice Pack Ground

1шт.

19

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

10шт.

19

87352747

CAP

1шт.

19

87693733

RETAINER

1шт.

20

84426139

TERMINAL

Cab Ground

1шт.

21

84149207

ELEC CONNECTOR

Cab Ground

1шт.

21

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

11шт.

21

87352750

CAP

1шт.

21

87693733

RETAINER

Wedge Lock

1шт.

22

84550089

ELEC CONNECTOR

Transmission Controller

1шт.

22

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Cavities, 1 - 4, 8 - 10, 12, 13, 15, 17 - 19, 23, 25, 26, 32, 39, 41, 42, 45, 46, 49 - 51, 53, 55, 56, 62, 68

30шт.

22

84129571

PLUG

Cavities, 5 - 7, 11, 14, 16, 20 - 22, 24, 27 - 31, 33 - 38, 40, 43, 44, 47, 48, 52, 54, 57 - 61, 63 - 67

38шт.

22

87717077

SHIELD

Cover

1шт.

Выбрано товаров: 69
