Запчасти Case 921G (55.510.030[04]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

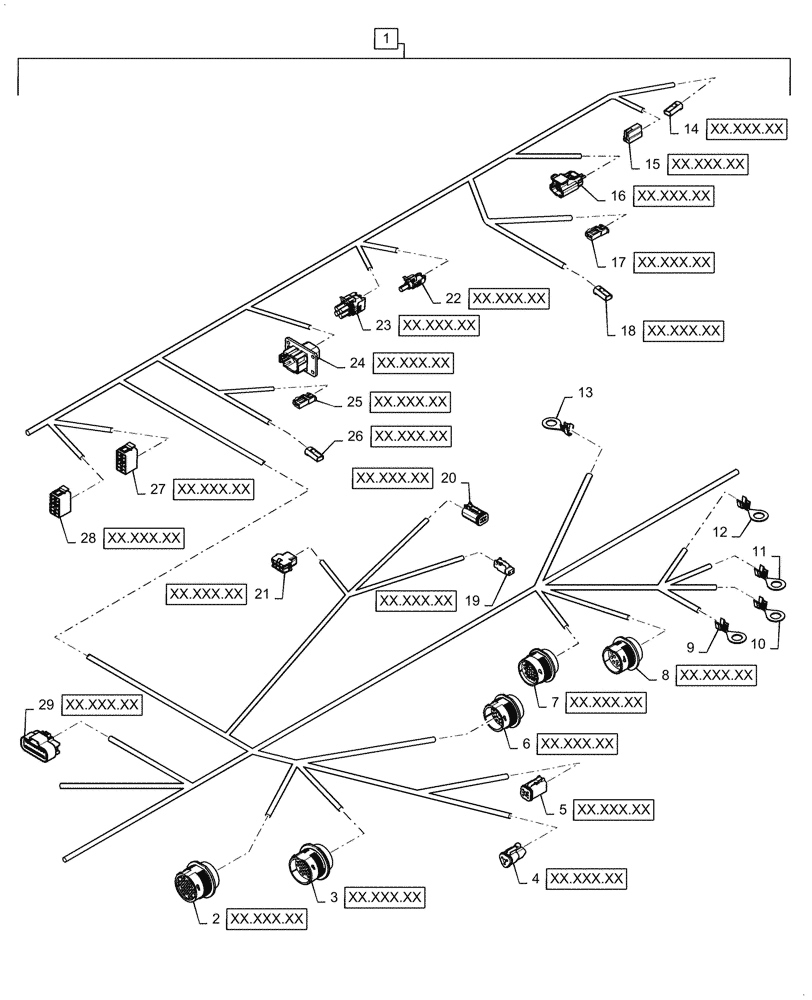

Схема запчастей Case 921G - (55.510.030[04]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
xx.xxx.xx
xx.xxx.xx
xx.xxx.xx
xx.xxx.xx
5
29
xx.xxx.xx
3
xx.xxx.xx
8
1
xx.xxx.xx
xx.xxx.xx
20
23
xx.xxx.xx
2
xx.xxx.xx
4
26
xx.xxx.xx
xx.xxx.xx
24
16
25
7
xx.xxx.xx
xx.xxx.xx
xx.xxx.xx
13
xx.xxx.xx
xx.xxx.xx
14
27
21
18
xx.xxx.xx
12
xx.xxx.xx
xx.xxx.xx
17
6
15
9
xx.xxx.xx
19
xx.xxx.xx
xx.xxx.xx
10
11
22
28

Артикул

Название

Примечание

Количество

1

47971221

WIRE HARNESS

Incl 2 - 29

1шт.

2

87696944

ELEC CONNECTOR,Female, 31 Pole

Cab to Transmission

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

31шт.

2

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

2

87271930

NUT

Plastic Panel Nut

1шт.

3

87696945

MULTIPOLE CONNECTOR,Male, 31 Pole

Cab to Bottom

1шт.

3

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Cavities, 3 - 28

26шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities, 1, 2, 29 - 31

5шт.

3

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

3

87271930

NUT

Plastic Panel Nut

1шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

JSS Steering Inline

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, A, B

2шт.

4

84068583

PLUG,12 - 16 Ga, White

Cavity, C

1шт.

4

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

4

84058194

PLUG

Keyed Wedge Lock

1шт.

4

84322203

CLIP

Mounting Clip

1шт.

5

87694112

ELEC CONNECTOR,Female, 6 Pole

Cab to JSS Frame Harness

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

6шт.

5

84391167

CAP

1шт.

5

87694150

LOCKING TAB,Wedge Lock

1шт.

6

87700159

ELEC CONNECTOR

Cab to Bottom, EH

1шт.

6

87410950

ELEC. TERMINAL PIN,Female

Cavities, A - N, S, T, W< X

17шт.

6

84068583

PLUG,12 - 16 Ga, White

Cavities, O - R, U, V

6шт.

6

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

6

87271930

NUT

1шт.

7

84807216

MULTIPOLE CONNECTOR,Female, 29 Pole

Cab to Engine

1шт.

7

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

Cavities, 1 - 22, 25, 26, 28

25шт.

7

84807680

PLUG

Cavities, 23, 24, 27, 29

4шт.

7

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

7

87271930

NUT

Plastic Panel Nut

1шт.

8

87703902

ELEC CONNECTOR

Cab to Engine

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

14шт.

8

84477111

LOCK WASHER

1шт.

8

87716303

NUT,1.500" x 18 UNEF

Plastic Nut

1шт.

9

84140737

TERMINAL CONNECTOR

B+ Power Stud

1шт.

10

84140737

TERMINAL CONNECTOR

B+ Power Stud

1шт.

11

84140737

TERMINAL CONNECTOR

B+ Power Stud

1шт.

12

84140737

TERMINAL CONNECTOR

B+ Power Stud

1шт.

13

84140737

TERMINAL CONNECTOR

B+ on LC1

1шт.

14

87688695

ELEC CONNECTOR,Female, 1 Cavity

Dome Light Ground

1шт.

14

87709400

ELEC. TERMINAL PIN

1шт.

15

84015523

WIRE CONNECTOR,Female

DM P

1шт.

15

84152584

TERMINAL,Tin, 0.50 - 1.00mm

2шт.

16

87382906

WIRE CONNECTOR,Female, 2 Cavities

Door Switch

1шт.

16

84395356

TERMINAL,Female, 2.8mm, 18-20

2шт.

17

84147089

ELEC CONNECTOR

Loudspeaker, LF

1шт.

17

87705596

TERMINAL CONNECTOR,Tin, 1.00 - 2.50mm

2шт.

18

87688695

ELEC CONNECTOR,Female, 1 Cavity

Rear Window Heater

1шт.

18

87697660

TERMINAL

1шт.

19

87696093

ELEC CONNECTOR,Female, 2 Cavities

SFB, XCP

1шт.

19

84567359

2шт.

19

87696145

LOCKING TAB

1шт.

19

87696547

ELEC CONNECTOR,Female, 2 Cavities

1шт.

20

87694101

ELEC CONNECTOR,Female, 4 Cavities

Telematics Diagnostic

1шт.

20

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Cavities, 2 - 4

3шт.

20

84068583

PLUG,12 - 16 Ga, White

Cavity, 1

1шт.

20

84391166

WIRE CONNECTOR,Male, 4 Pins

1шт.

20

87694148

ELEC CONNECTOR

Wedge Lock

1шт.

21

84364851

ELEC CONNECTOR

Diagnostic

1шт.

21

82864512

TERMINAL

Cavities, 1 - 4

4шт.

21

87700799

Housing

1шт.

22

87693744

WIRE CONNECTOR

Rear Wiper Motor, Ground

1шт.

22

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

1шт.

23

87692862

ELEC CONNECTOR

Rear Wiper Motor

1шт.

23

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

2шт.

23

87686742

PLUG

2шт.

24

87695891

ELEC CONNECTOR

Cab to Roof

1шт.

24

84152584

TERMINAL,Tin, 0.50 - 1.00mm

Cavities, 1 - 7

7шт.

24

84068583

PLUG,12 - 16 Ga, White

Cavity, 8

1шт.

24

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

25

84147089

ELEC CONNECTOR

Loudspeaker, RH

1шт.

25

87705596

TERMINAL CONNECTOR,Tin, 1.00 - 2.50mm

2шт.

26

87688695

ELEC CONNECTOR,Female, 1 Cavity

Rear Window Heater

1шт.

26

87697660

TERMINAL

1шт.

27

87716755

ELEC CONNECTOR,Female, 10 Cavities

Heated Mirror Switch

1шт.

27

87697756

TERMINAL

Cavities, 2, 3, 7 - 10

6шт.

27

87688853

WIRE CONNECTOR

Secondary Lock

1шт.

28

87716755

ELEC CONNECTOR,Female, 10 Cavities

Rear Defrost Switch

1шт.

28

87697756

TERMINAL

Cavities, 2, 3, 7 - 10

6шт.

28

87688853

WIRE CONNECTOR

Seondary Lock

1шт.

29

87696573

ELEC CONNECTOR

Intercept to HVAC System by HVAC

1шт.

29

84123443

TERMINAL

Cavities, A - F, H, J, L - S

14шт.

29

84146448

ELEC CONNECTOR

Cavities, G, K

2шт.
