(55.510.030[02]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS

Запчасти Case 921G (55.510.030[02]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS (55) - ELECTRICAL SYSTEMS

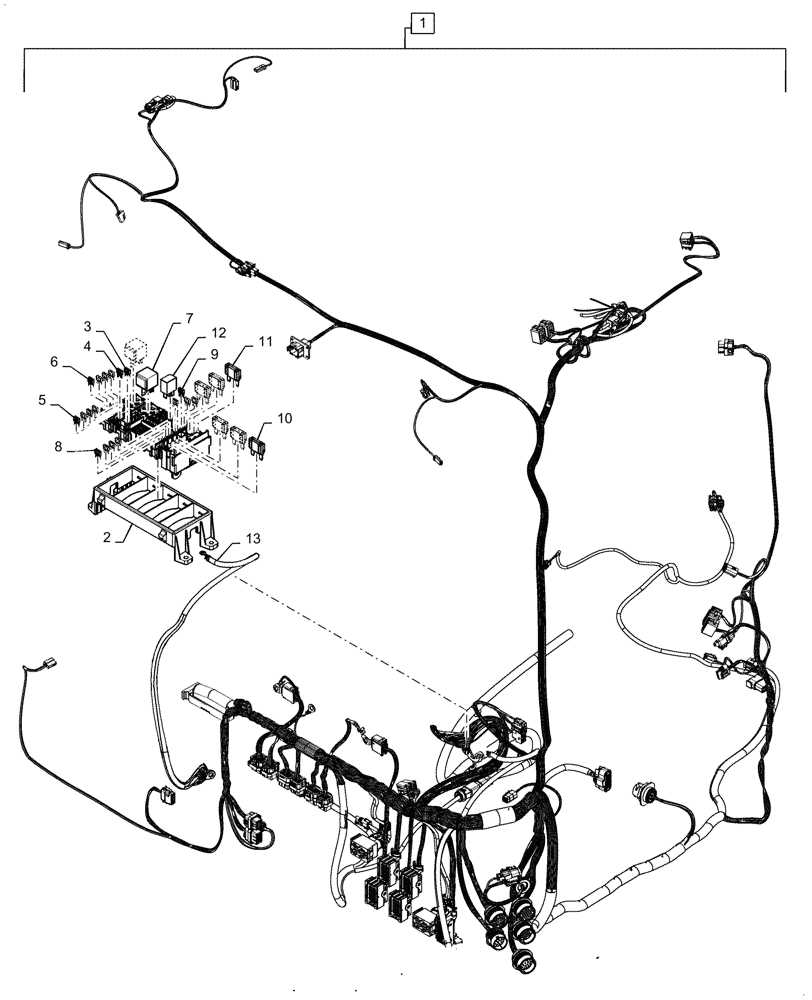

Схема запчастей Case 921G - (55.510.030[02]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS (55) - ELECTRICAL SYSTEMS
9
12
10
1
8
6
11
5
13
2
3
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47971221

WIRE HARNESS

Incl 2 - 13

1шт.

2

82039691

FUSE BOX

For 5 Modules, Type A

1шт.

3

84127703

FUSE,15A, Mini, Blue

1шт.

4

84127705

FUSE,25A, Mini, White

1шт.

5

84153830

FUSE,5A, Mini, Beige

1шт.

6

84152583

FUSE,7.5A, Mini, Brown

1шт.

7

47406522

RELAY,4 Pin, 24V

1шт.

8

84127704

FUSE,20A, Mini, Yellow

1шт.

9

84127702

FUSE,10A, Mini, Red

1шт.

10

84279530

FUSE,50A, Maxival, Red

1шт.

11

84157159

FUSE,40A, Maxi, Orange

1шт.

12

84368717

RELAY

1шт.

13

NSS

NOT SOLD SEPARAT

Harness, Main Cab Upgrade, Serviced W/ Ref 1

1шт.
