(55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, Z-BAR

Запчасти Case 921G (55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, Z-BAR (55) - ELECTRICAL SYSTEMS

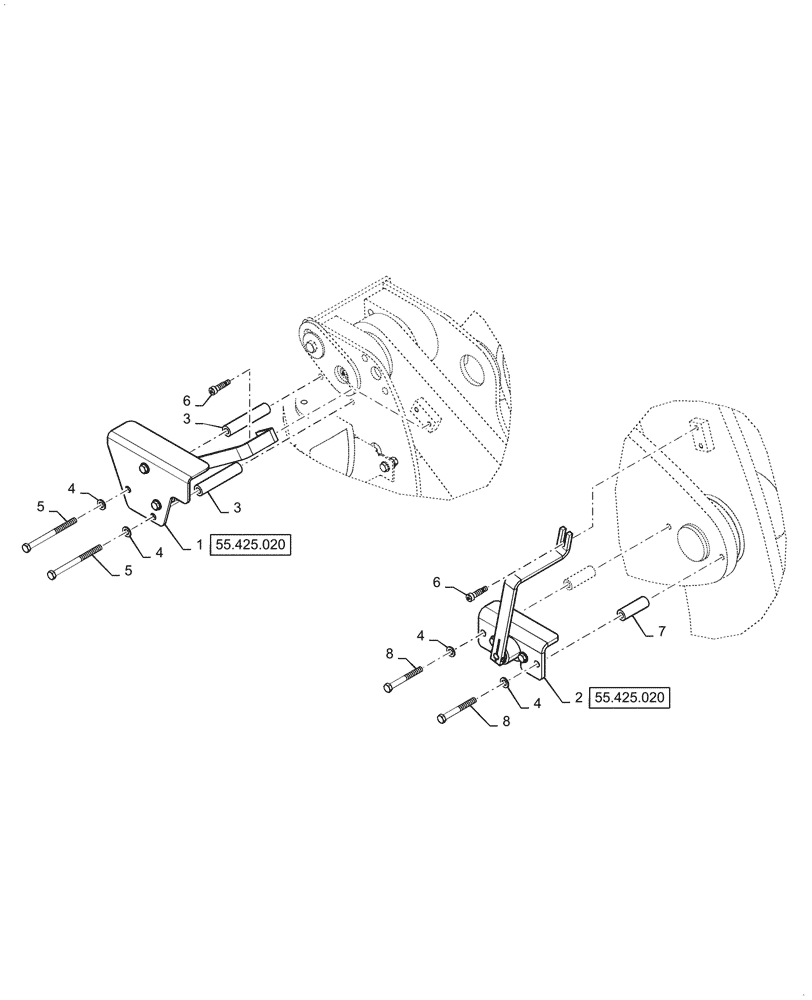

Схема запчастей Case 921G - (55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, Z-BAR (55) - ELECTRICAL SYSTEMS
55.425.020
2
4
6
8
5
1
3
6
4
7
8
3
4
5
4
55.425.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47789421

SENSOR

Electro Hydraulic Lift

1шт.

2

47789373

SENSOR

Electro Hydraulic Tilt

1шт.

3

NSS

NOT SOLD SEPARAT

2шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

5

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

6

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

2шт.

7

NSS

NOT SOLD SEPARAT

2шт.

8

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.
