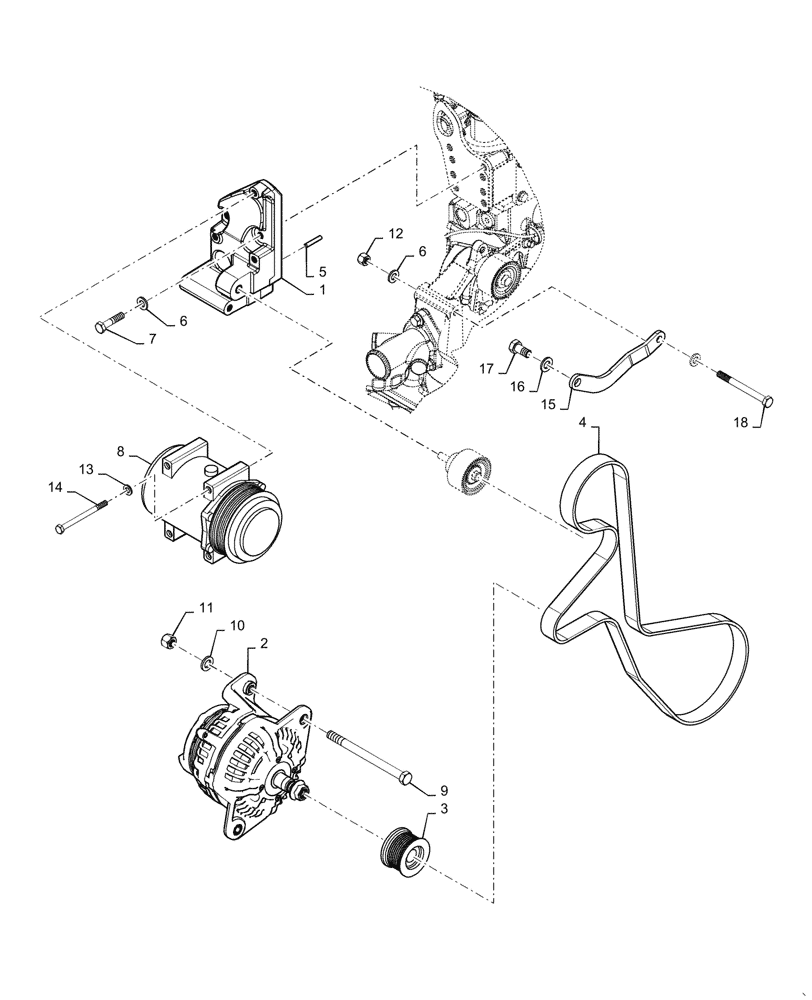

Запчасти Case 921G (55.301.020[01]) - VAR - 782440 - ALTERNATOR PULLEY, BELT AND BRACKET INSTALLATION, W/ A/C (55) - ELECTRICAL SYSTEMS

1

84394358

BRACKET

Alternator, Mounting

1шт.

2

84383847

ALTERNATOR,24V, 120A

1шт.

2

84383847R

REMAN-ALTERNATOR

1шт.

2

84383847C

CORE-ALTERNATOR

1шт.

3

84409052

PULLEY,66mm OD

1шт.

4

47501019

BELT

Alternator, 1790mm L

1шт.

5

837-6035

DOWEL,M6 x 35

2шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

7

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

8

8500795

AIRCOND. COMPRESSOR,W/ Pulley

24V Small Body

1шт.

8

8500795R

REMAN-COMPRESSOR,W/ Pulley

1шт.

8

8500795C

CORE-COMPRESSOR

1шт.

9

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

231-4248

NUT,1/2"-13, GB

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

14

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

3шт.

15

47517050

BRACKET

Alternator Brace

1шт.

16

14496705

LOCK WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

17

9427615

BOLT,Hex, 1/2” - 13 x 1”, Full Thd, Gr 8

1шт.

18

814-10105

BOLT,Hex, M10 x 1.5 x 105mm, Cl 8.8

1шт.
