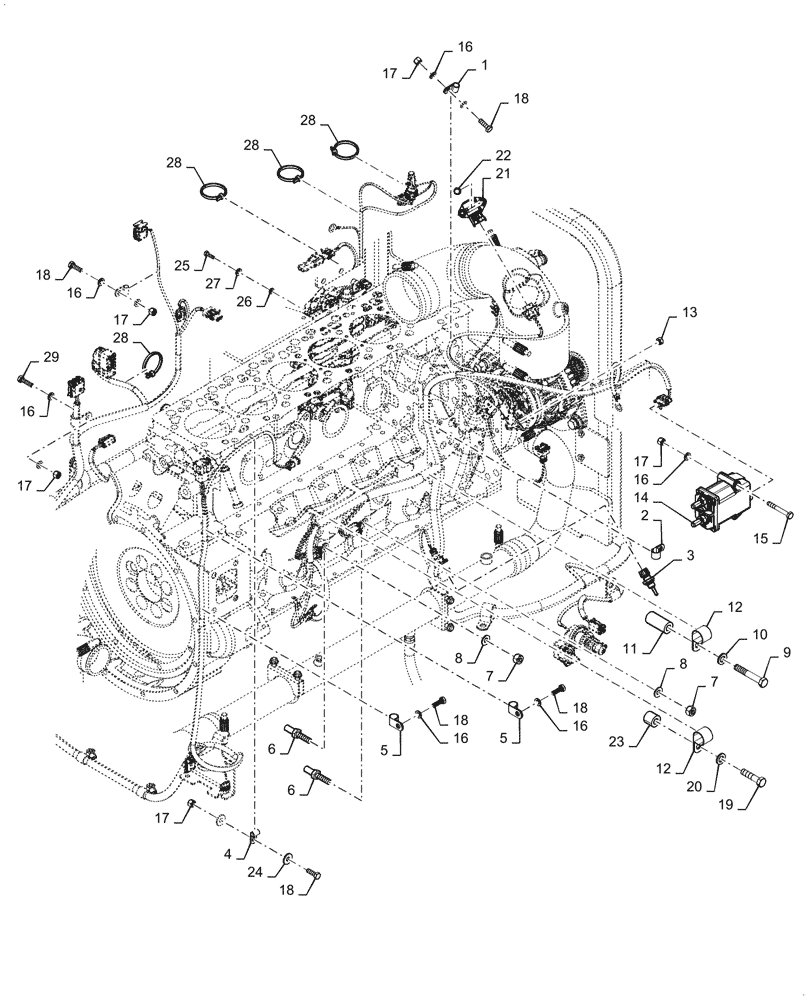

Запчасти Case 921G (55.101.020[02]) - ENGINE AND REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

2

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

3

84574743

SENSOR

Temperature

1шт.

4

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

3шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

6

L127553

STUD

2шт.

7

L127555

NUT,Hex, 3/8" - 16

2шт.

8

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

9

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

324441A1

SPACER,12.7mm ID x 25.4mm OD x 54mm L

1шт.

12

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

2шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

47686204

RELAY

Battery Disconnect

1шт.

15

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

19

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

21

87482355

SENSOR

Humidity

1шт.

22

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

23

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

1шт.

24

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

25

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

27

892-11008

LOCK WASHER,8mm ID

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

29

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
