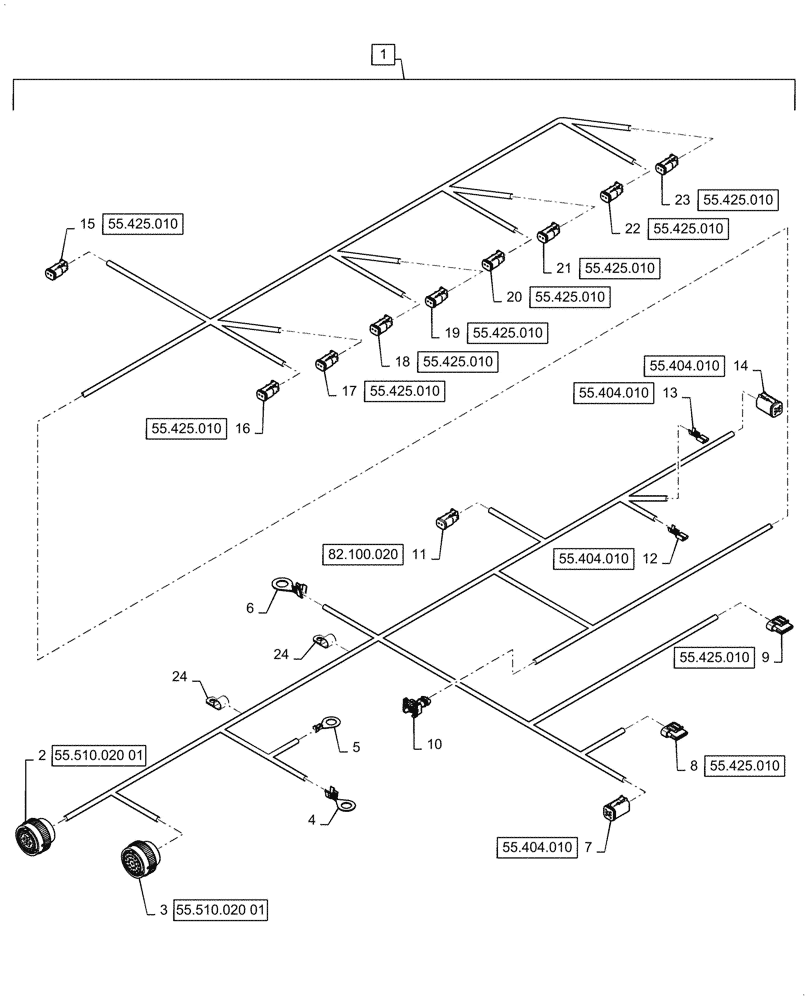

Запчасти Case 921G (55.101.010[02]) - FRONT CHASSIS HARNESS ASSEMBLY, Z-BAR (55) - ELECTRICAL SYSTEMS

1

47976742

WIRE HARNESS

Front Chassis, Z-BAR, Incl 2 - 24

1шт.

1

47978393

WIRE HARNESS

Front Chassis, XR, Incl 2 - 24

1шт.

2

87704426

ELEC CONNECTOR

Front to Bottom, Standard

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, C, F, H - T, V

13шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, A, B, D, E, G, U, W, X

8шт.

3

87700170

WIRE CONNECTOR

Front to Bottom, EH

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, A - N, P, Q, S, T, V - X

20шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities, O, R, U

3шт.

4

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

5

84426126

TERMINAL

Chassis Ground

1шт.

6

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

7

87694109

ELEC CONNECTOR

Front Combo Lamp, RH

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1 - 5

5шт.

7

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

7

84253889

JUNCTION

Shell

1шт.

7

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

8

84403598

WIRE CONNECTOR

Boom Angle Sensor

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

6шт.

9

84403598

WIRE CONNECTOR

Bucket Angle Sensor

1шт.

9

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

6шт.

10

84607243

ELEC CONNECTOR,Female, 2 Cavities

Ride Control Solenoid

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

Coupler Valve

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

11

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

12

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Power

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

13

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Ground

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

14

87694109

ELEC CONNECTOR

Front Comp Lamp, LH

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1 - 5

5шт.

14

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

14

84253889

JUNCTION

Shell

1шт.

14

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Pilot Enable Solenoid

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Lower

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Dump

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Raise

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Roll

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1 Left

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

20

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1 Right

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

21

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2 Left

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2 Right

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

23

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

24

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.
