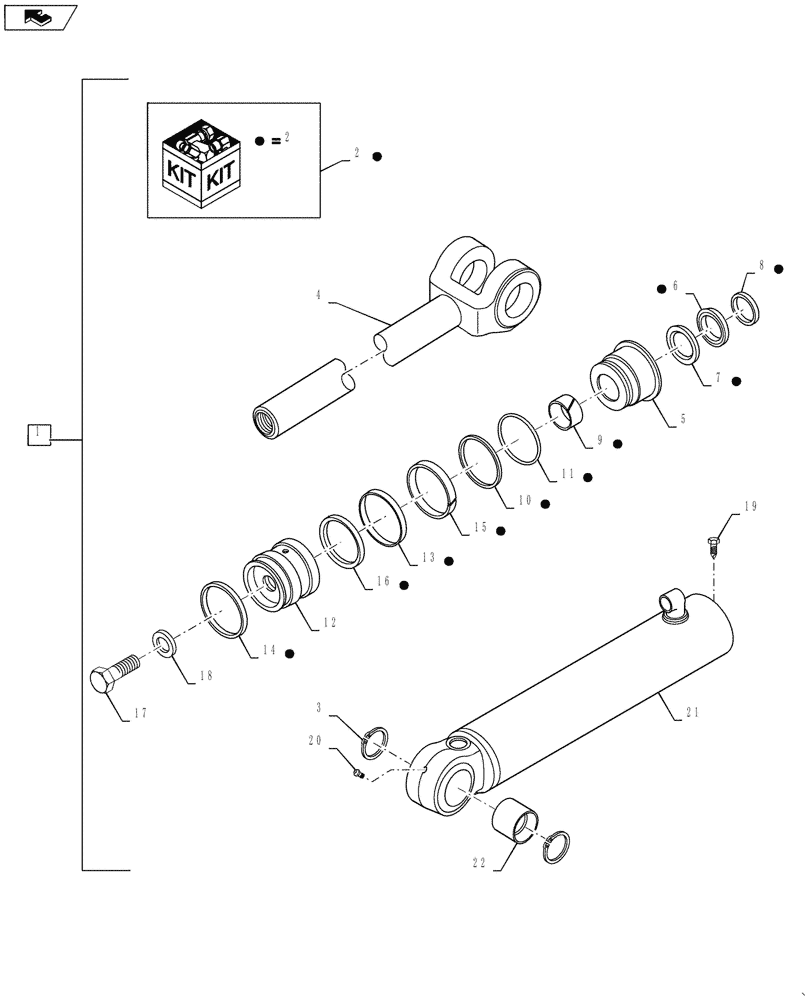

Запчасти Case 921G (41.216.020[02]) - STEERING CYLINDER ASSEMBLY, RIGHT (41) - STEERING

1

47412984

STEERING CYLINDER

Steering Cylinder, Right Hand

1шт.

2

87363451

SEAL KIT

Steering Cylinder; Incl 6 - 11, 13 - 16

1шт.

3

100-21244

SNAP RING,2.44", Int, #244

2шт.

4

442703A1

PISTON ROD

Rod Weldment

1шт.

5

1980321C3

GLAND

Packing

1шт.

6

NSS

NOT SOLD SEPARAT

Rod Seal, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Buffer Seal, Incl in 2

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Rod

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

11

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

12

87307859

PISTON

82.6 Bore; 44.5 Rod

1шт.

13

87398130

SEAL,79.07mm ID x 83.79mm OD x 6.96mm Thk

Piston

1шт.

14

192330A1

SEALING RING,75.3mm ID x 82.5mm OD x 4.7mm Thk

Cast Iron; 82.6 Dia

1шт.

15

S109445

RING,82.55mm OD, Ext

Wear

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

Loader

1шт.

17

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

Bolt and Washer Assy; Incl 18

1шт.

18

NSS

NOT SOLD SEPARAT

Washer, Incl in 17

1шт.

19

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

22

442711A1

BUSHING,39.99mm ID x 62mm OD x 28mm W

Self Aligning

1шт.
