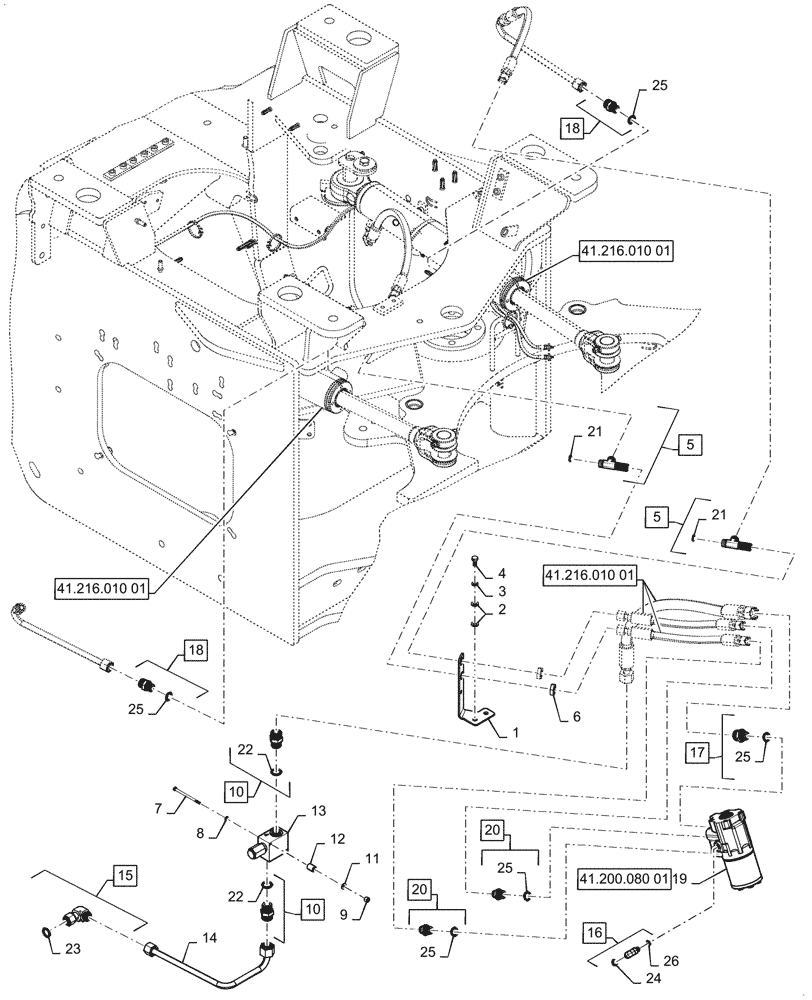

Запчасти Case 921G (41.216.010[02]) - STEERING CYLINDER, MOUNTING (41) - STEERING

1

47728697

BRACKET

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 21

2шт.

6

701-903

NUT,13/16" - 16

2шт.

7

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

832-10406

NUT,M6 x 1, Cl 8

2шт.

10

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 22

2шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

12

87563043

SPACER

2шт.

13

87427823

VALVE PRESSURE RELIE

1шт.

14

84428746

HYD TUBE

Valve to Manifold

1шт.

15

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 23

1шт.

16

84327040

ELBOW

Incl 24, 26

1шт.

17

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 25

1шт.

18

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 25

3шт.

19

84195173

STEERING VALVE

Orbitrol

1шт.

20

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 25

2шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

25

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

6шт.

26

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
