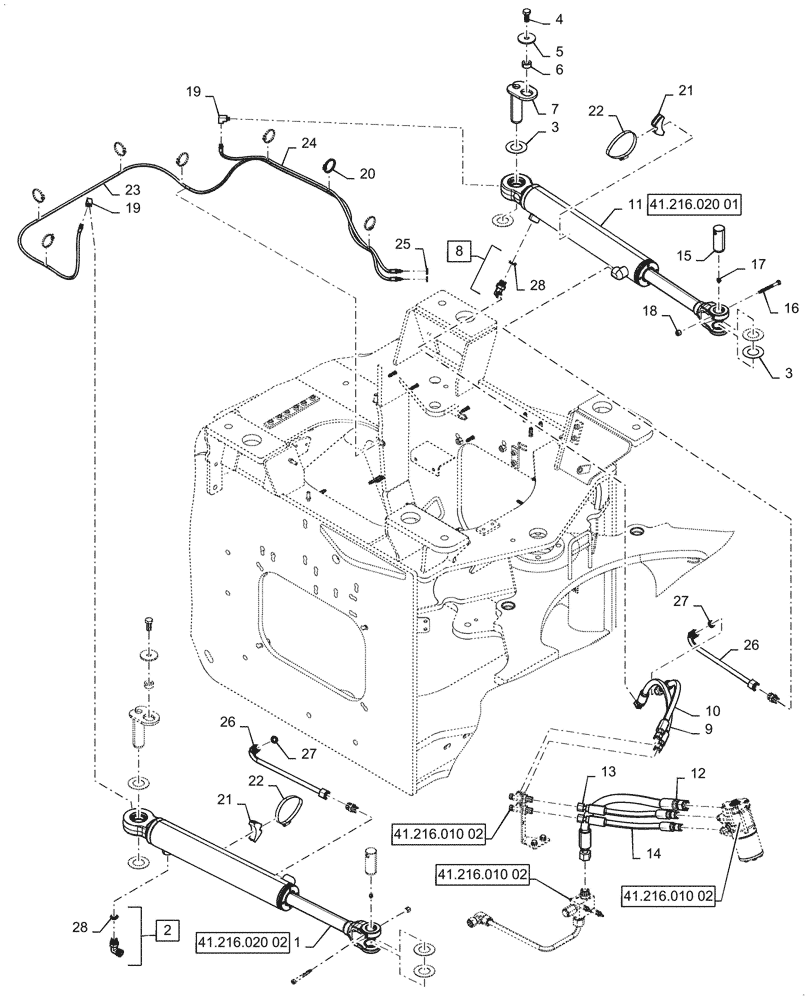

Запчасти Case 921G (41.216.010[01]) - STEERING CYLINDER, MOUNTING (41) - STEERING

1

47412984

STEERING CYLINDER

Assy, Right

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 28

1шт.

3

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

8шт.

4

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

5

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

6

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

7

87351646

PIN,39.96mm OD x 141mm L

2шт.

8

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 28

1шт.

9

47382553

HOSE

Left Side Base

1шт.

10

47880260

HOSE

LH Side Rod

1шт.

11

47415407

STEERING CYLINDER

Assy, Left

1шт.

12

47670983

HOSE

Steering Return

1шт.

13

47670957

HOSE

Steering Cylinder

1шт.

14

47670979

HOSE

Steering Cylinder

1шт.

15

87559561

PIN,40mm OD x 95.1mm L

Front

2шт.

16

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

328082A1

ELBOW

2шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

21

8500483

BLOCK

2шт.

22

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

2шт.

23

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

Grease

1шт.

24

L54694

HOSE,4.8mm ID x 1041mm L

Grease

1шт.

25

F53473

LOCK NUT,1/8-27 NPSM

2шт.

26

8602591

HYD TUBE

Steering Cylinder

2шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

28

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.
