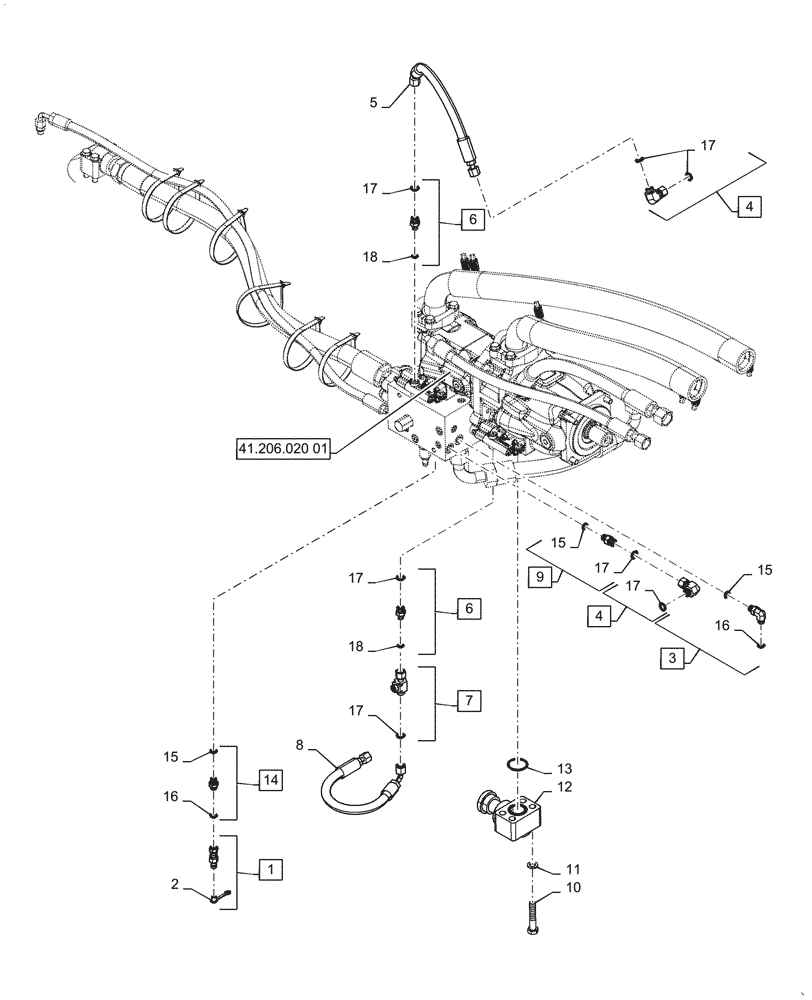

Запчасти Case 921G (41.206.020[02]) - PRIORITY PUMP INSTALLATION (41) - STEERING

1

190117A1

COUPLING

Diagnostic, Incl 2

3шт.

2

H434163

DUST CAP

3шт.

3

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

1шт.

4

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 17

2шт.

5

84327033

HOSE ASSY.

Pump 2 - Load Sense

1шт.

6

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl 17, 18

2шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 17

1шт.

8

84327034

HOSE ASSY.

Pump 2 - Load Sense

1шт.

9

84327039

CHECK VALVE

Incl 15, 17

1шт.

10

412084

BOLT,Hex, M14 x 2 x 75mm, Cl 10.9

4шт.

11

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

8шт.

12

84243173

HYD TUBE

Pump to Manifold

1шт.

13

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

2шт.

15

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

18

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.
