Запчасти Case 921G (41.206.020[01]) - PRIORITY PUMP INSTALLATION (41) - STEERING

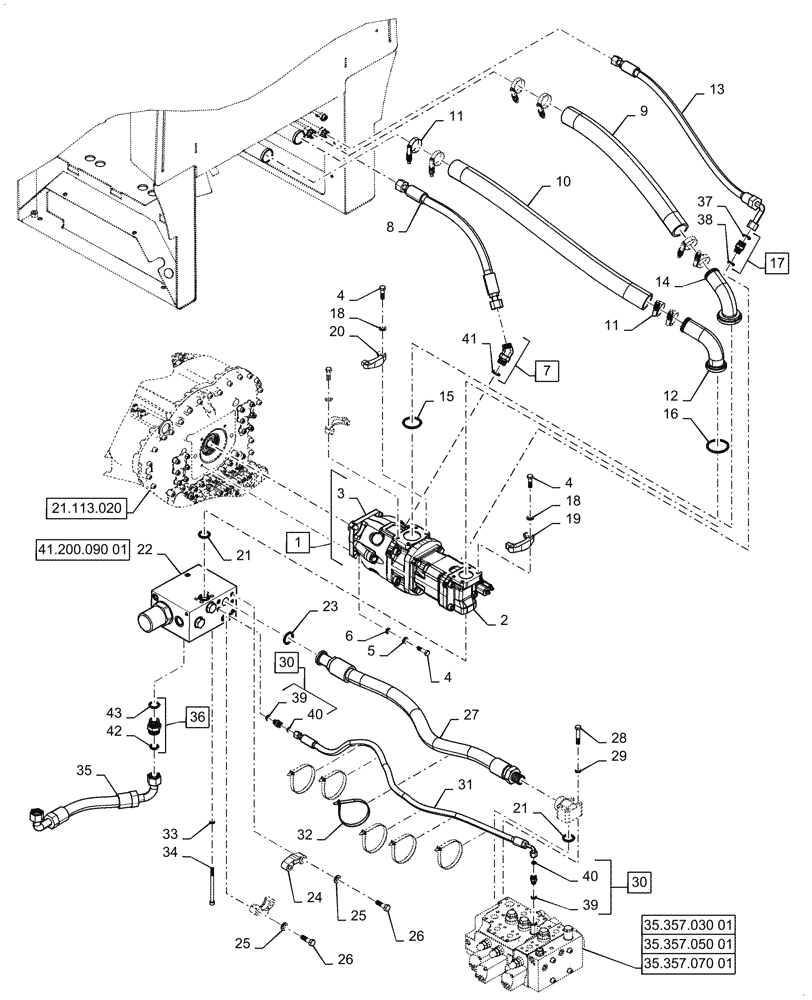

Схема запчастей Case 921G - (41.206.020[01]) - PRIORITY PUMP INSTALLATION (41) - STEERING
35.357.030 01
34
40
19
33
30
26
32
22
40
18
7
23
4
37
11
35
27
2
8
10
14
38
1
15
36
9
21
25
39
16
4
24
4
18
39
12
30
31
43
5
13
26
6
21
11
25
3
28
42
29
41
17
20
21.113.020
41.200.090 01
35.357.070 01
35.357.050 01

Артикул

Название

Примечание

Количество

1

84240549

HYDRAULIC PUMP

Assy, Main, Incl 2, 3

1шт.

2

84327052

HYDRAULIC PUMP,85 CC

Front Section

1шт.

3

84327053

HYDRAULIC PUMP,60 CC

Rear Section

1шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 41

1шт.

8

84243171

HOSE ASSY.

Large Case Drain

1шт.

9

84248698

HOSE,50.8mm ID x 645mm L, SAE 100R4

Large Pump Suction

1шт.

10

84248697

HOSE,50.8mm ID x 905mm L, SAE 100R4

Small Pump Suction

1шт.

11

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

12

47728774

TUBE

Pump Suction

1шт.

13

84248699

HOSE ASSY.

Small Case Drain

1шт.

14

87470879

HYD TUBE

1шт.

15

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

16

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

17

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 37, 38

1шт.

18

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

19

A14141

FLANGE

2шт.

20

L14386

CLAMP

2шт.

21

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

22

47927955

VALVE

Steering Priority Manifold

1шт.

23

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

3шт.

24

87680118

CLAMP

4шт.

25

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

26

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

4шт.

27

84256922

HOSE ASSY.

Articulation Pressure

1шт.

28

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

29

13507421

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

30

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 39, 40

2шт.

31

84270692

HOSE ASSY.

Articulation Load Sense

1шт.

32

84266050

CABLE TIE,384mm L, Polyamide

6шт.

33

892-11010

LOCK WASHER,M10

4шт.

34

84256618

HEX SOC SCREW

4шт.

35

84300177

HOSE ASSY.

Priority Tank

1шт.

36

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 42, 43

1шт.

37

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

39

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

41

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

42

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

43

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 43
