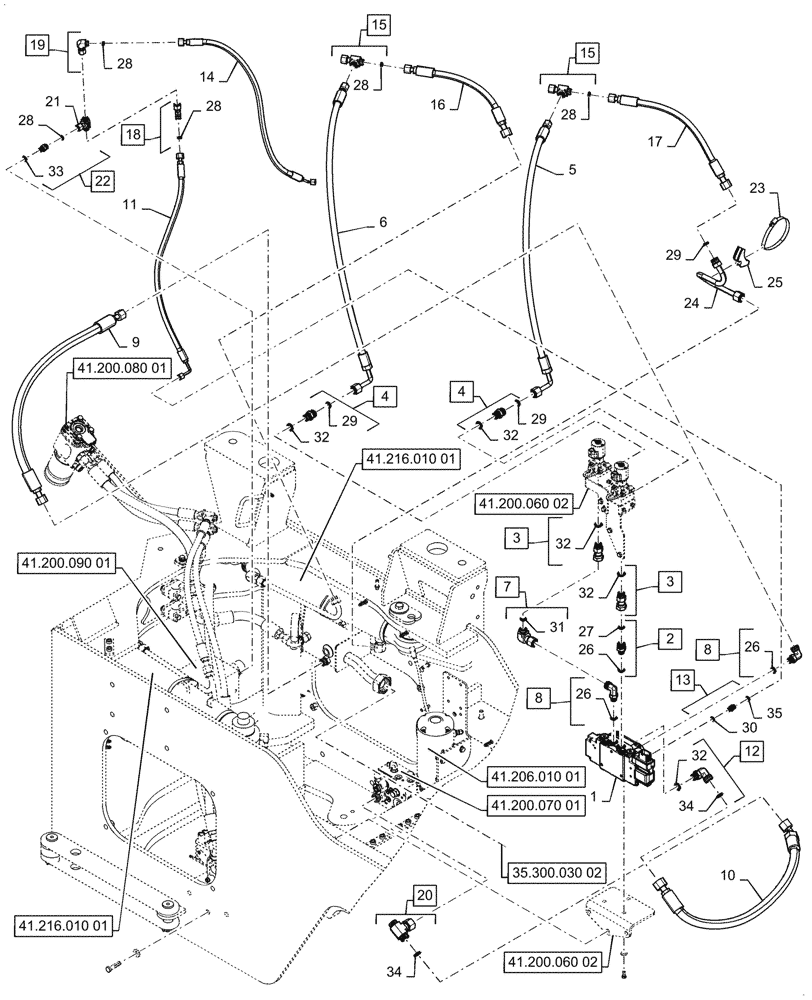

Запчасти Case 921G (41.200.060[01]) - VAR - 482913 - STANDARD, STEERING - EH W/ JOYSTICK (41) - STEERING

1

47908613

STEERING VALVE

1шт.

2

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 26, 27

1шт.

3

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

Incl 32

2шт.

4

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 29, 32

2шт.

5

47930920

HOSE

to Cylinder

1шт.

6

47930921

HOSE

to Cylinder

1шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 31

1шт.

8

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 26

2шт.

9

47922041

HOSE

to Tank

1шт.

10

47922046

HOSE

Pressure

1шт.

11

47930922

HOSE

Steering LS

1шт.

12

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 32, 34

1шт.

13

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 30, 35

1шт.

14

47922045

HOSE

Steering LS

1шт.

15

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 28

2шт.

16

47460068

HOSE

RH Rod

1шт.

17

47933876

HOSE

RH Base

1шт.

18

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 28

1шт.

19

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 28

1шт.

20

701-419

FITTING,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 34

1шт.

21

47908251

VALVE

Hyd Shuttle Tee

1шт.

22

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 28, 33

1шт.

23

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

24

47930333

TUBE

RH Cylinder Head

1шт.

25

8500483

BLOCK

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

32

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

33

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

35

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
