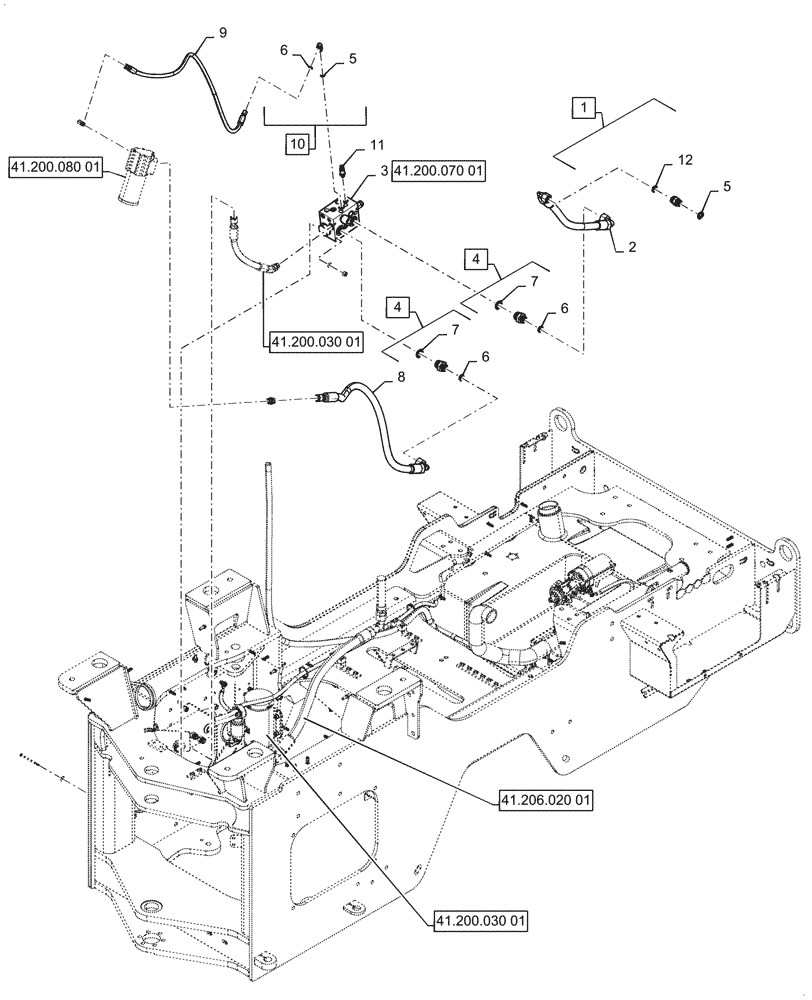

Запчасти Case 921G (41.200.030[02]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK (41) - STEERING

1

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 5, 12

1шт.

2

84374035

HOSE ASSY.,19.05mm ID x 860.5mm L, SAE 100R12

Pressure

1шт.

3

47792683

MANIFOLD

Aus Steering

1шт.

4

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 6, 7

2шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

8

47958060

HOSE

Steering Pressure

1шт.

9

84243205

HOSE ASSY.

Load Sense

1шт.

10

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 5, 6

1шт.

11

84409605

SENSOR

Steering Pressure

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
