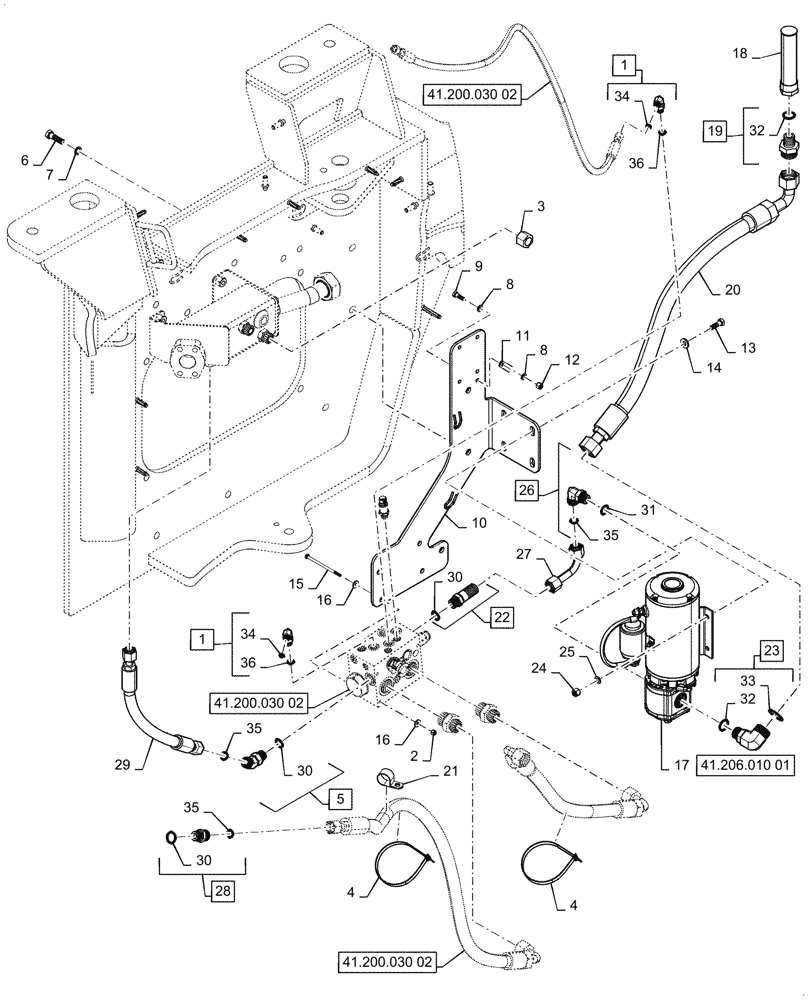

Запчасти Case 921G (41.200.030[01]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK (41) - STEERING

1

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 34, 36

2шт.

2

832-10406

NUT,M6 x 1, Cl 8

4шт.

3

701-906

CAP,1" - 14

1шт.

4

84266050

CABLE TIE,384mm L, Polyamide

5шт.

5

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 30, 35

1шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

7

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

3шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

10

47920053

BRACKET

1шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

16

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

17

84419597

MOTOR-PUMP

Aux Steering

1шт.

18

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

19

87433494

HYD CONNECTOR

Incl 32

1шт.

20

87592638

HOSE ASSY.

Aux Suction

1шт.

21

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

22

84224893

HYD CONNECTOR,Hex, M22 x 1.5 ORFS

Incl 30

1шт.

23

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 32, 33

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

25

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

26

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 31, 35

1шт.

27

47920061

TUBE

Aux Pressure

1шт.

28

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 30, 35

1шт.

29

84374066

HOSE ASSY.,15.88mm ID x 507.9mm L, SAE 100R1

Filter Manifold

1шт.

30

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

31

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

32

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

33

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

35

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

36

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
