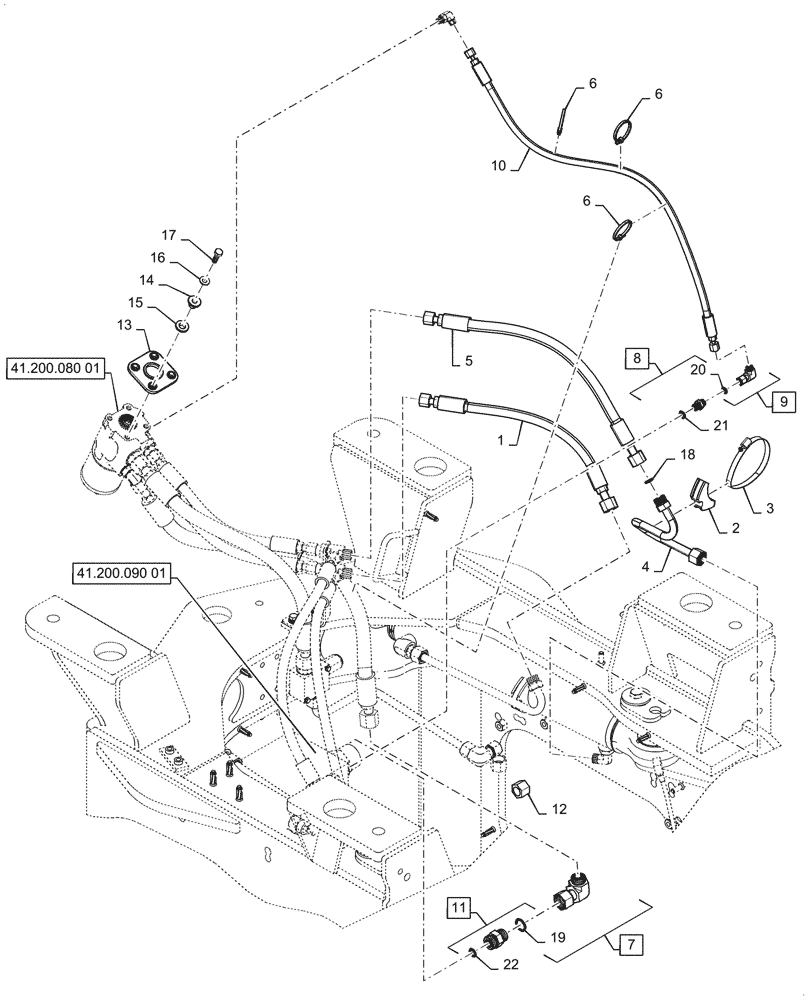

Запчасти Case 921G (41.200.020[01]) - VAR - 782441 - STANDARD STEERING - W/O JOYSTICK (41) - STEERING

1

47382546

HOSE

RH Side Rod

1шт.

2

8500483

BLOCK

1шт.

3

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

4

47930333

TUBE

RH Steering Cylinder, Head

1шт.

5

47930335

HOSE

RH Side Base

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

7

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 19

1шт.

8

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 20, 21

1шт.

9

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 20

1шт.

10

84243189

HOSE ASSY.

Steering Load Sense

1шт.

11

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 19, 22

1шт.

12

701-906

CAP,1" - 14

1шт.

13

84553550

ISOLATOR

1шт.

14

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

15

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
