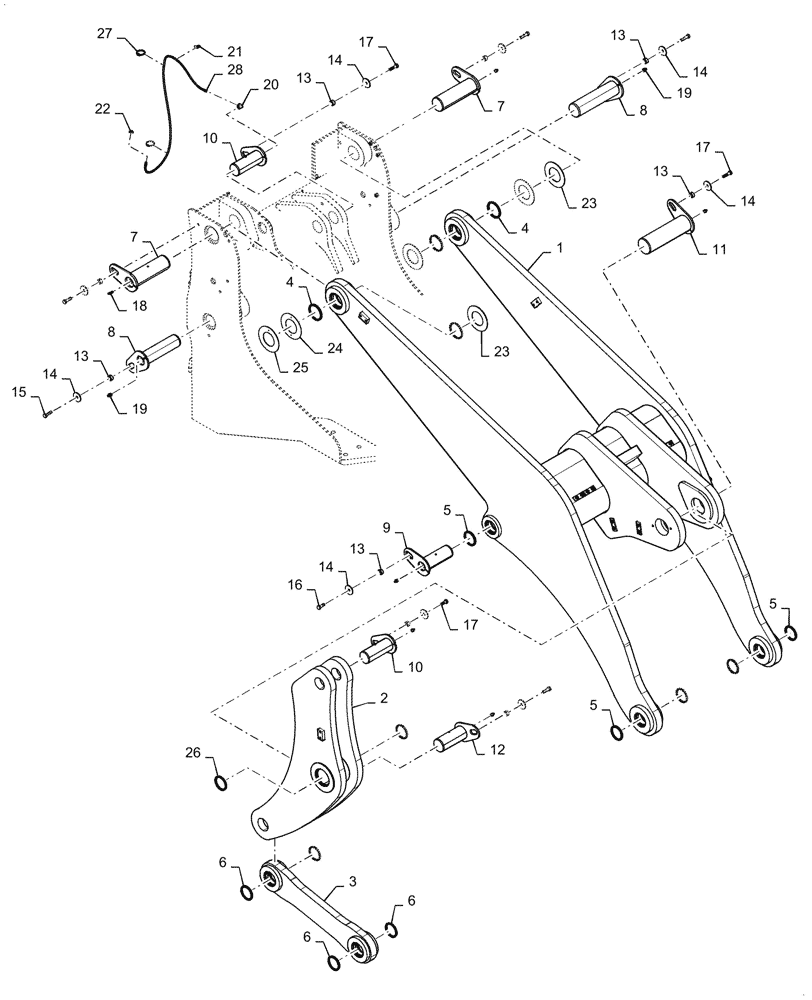

Запчасти Case 921G (39.100.090) - LIFT ARMS, XR (39) - FRAMES AND BALLASTING

1

47646535

LIFT ARM

1шт.

2

47724171

BELLCRANK

Bellcrank Assy

1шт.

3

84527287

LIFT LINK

Dump Assy

1шт.

4

86982500

SEAL,95.12mm ID x 111.15mm OD x 9.77mm Thk

4шт.

5

365523A1

WIPER SEAL

8шт.

6

S92653

WIPER

4шт.

7

47909419

PIN

Lift Arm

2шт.

8

87308904

PIN,82.55mm OD x 308mm L

Lift Cylinder, Chassis

2шт.

9

87308953

PIN,82.55mm OD x 239.5mm L

Lift Cylinder, Arm

2шт.

10

84327606

PIN

Tilt Cylinder

2шт.

11

84327610

PIN,114.3mm OD x 419mm L

Bellcrank

1шт.

12

84327613

PIN

Dump Link

1шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

16

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

17

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

18

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

20

328082A1

ELBOW

90 Degree

1шт.

21

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

22

F53473

LOCK NUT,1/8-27 NPSM

1шт.

23

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

1шт.

24

87308470

WASHER

1шт.

25

87308469

WASHER

1шт.

26

84238525

SEALING RING

2шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

28

318012A1

FLEXIBLE HOSE

Grease Line

1шт.
