Запчасти Case 921G (35.752.010[03]) - COOLING FAN RELIEF VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

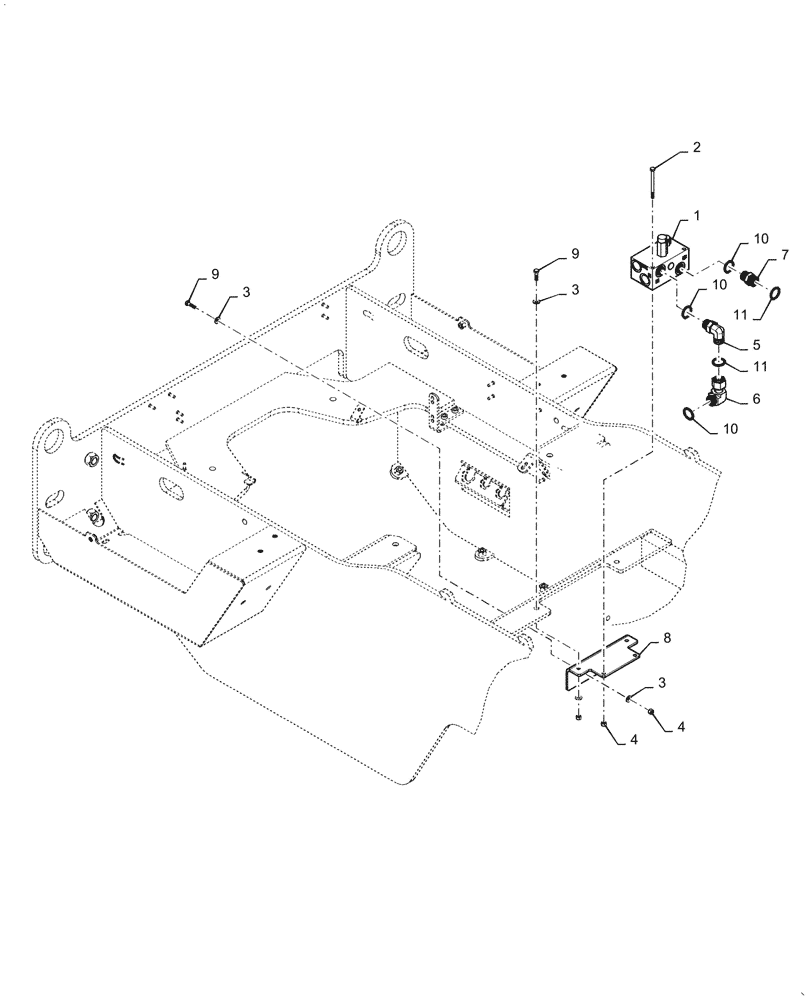

Схема запчастей Case 921G - (35.752.010[03]) - COOLING FAN RELIEF VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
11
4
7
6
11
9
10
3
5
1
10
3
2
3
10
9
4
8

Артикул

Название

Примечание

Количество

1

8500562

HYDRAULIC VALVE

Fan Relief

1шт.

2

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

5

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

6

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

7

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

8

84401776

MOUNTING PLATE

Fan Valve Non-Reverser

1шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

11

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 11
