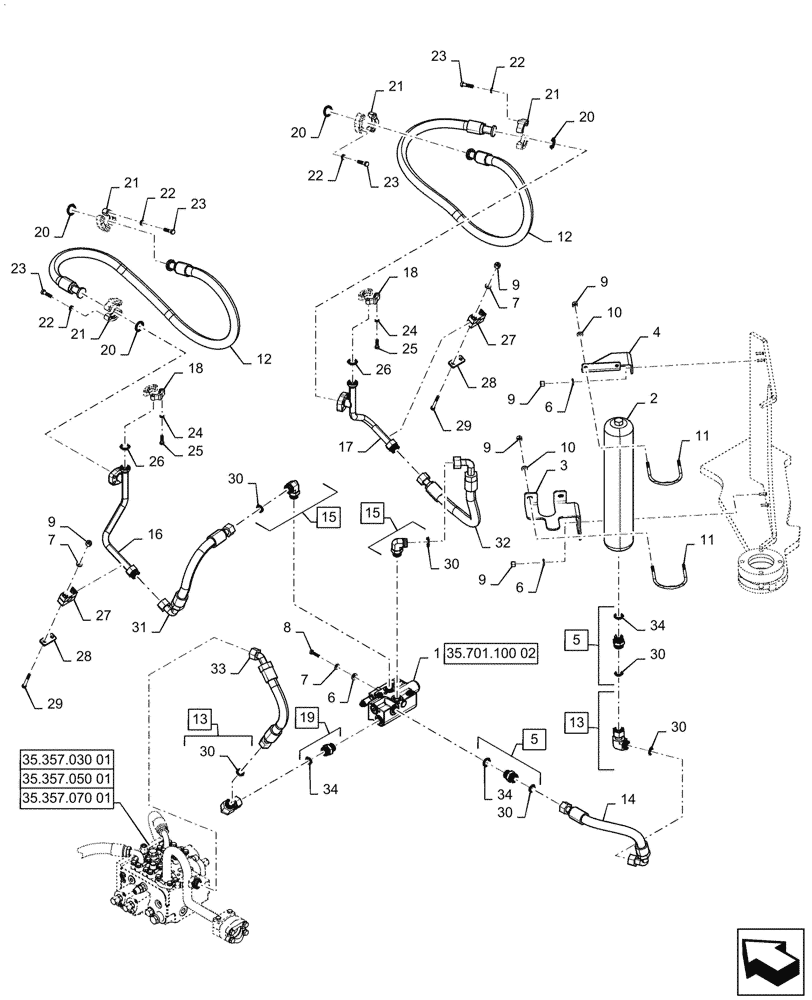

Запчасти Case 921G (35.701.040[01]) - VAR - 782503 - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

84494280

CONTROL VALVE

Ride Control

1шт.

2

87393434

ACCUMULATOR,3.8L

1шт.

3

47940648

BRACKET

Accumulator

1шт.

4

87529280

BRACKET

Accumulator

1шт.

5

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 30, 34

2шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

8

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

12шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

11

87492028

U-BOLT

2шт.

12

48010255

HOSE

Ride Control

2шт.

13

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 30

2шт.

14

47940647

HOSE

Ride Control Accumulator

1шт.

15

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 30

2шт.

16

47927233

HYD TUBE

Ride Control, RH Cylinder Base

1шт.

17

47927235

HYD TUBE

Ride Control, LH Cylinder Base

1шт.

18

86980731

CLAMP

4шт.

19

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 34

1шт.

20

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

21

86980732

CLAMP

8шт.

22

892-11012

LOCK WASHER,M12

16шт.

23

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

16шт.

24

892-11010

LOCK WASHER,M10

8шт.

25

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

26

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

27

367489A1

BLOCK

2шт.

28

367658A1

PLATE

2шт.

29

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

30

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

31

47927231

HOSE

Ride Control, RH Cylinder Base

1шт.

32

47927229

HOSE

Ride Control, LH Cylinder Base

1шт.

33

47927237

HOSE

Ride Control, Valve to Return Tube

1шт.

34

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.
