(35.359.030[02]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR

Запчасти Case 921G (35.359.030[02]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

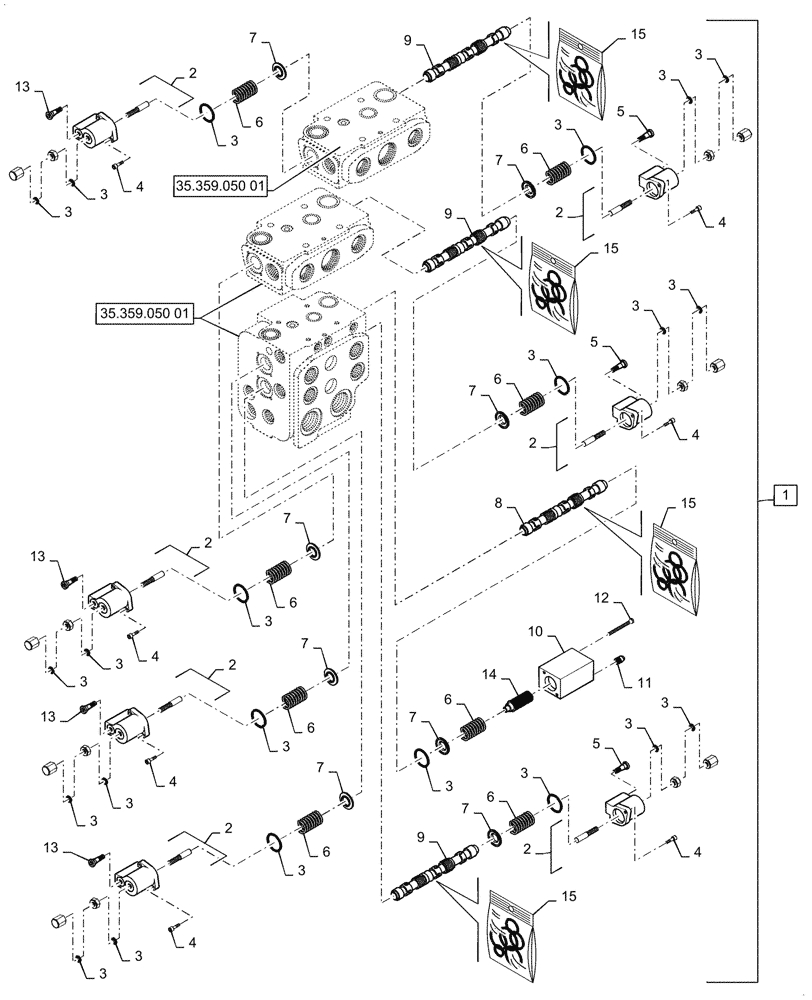

Схема запчастей Case 921G - (35.359.030[02]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.050 01
6
4
6
6
7
3
4
3
3
13
7
7
9
10
2
7
2
3
11
3
13
14
4
3
6
7
3
3
9
3
3
3
8
3
3
3
4
3
5
13
15
13
4
7
7
3
9
6
6
2
3
5
2
6
2
15
12
3
15
4
7
3
5
6
2
4
1
3
3
2
15
3
35.359.050 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84240722

VALVE

Four Spool, Z-Bar / XR / LR, Incl 2 - 16

1шт.

2

84351602

CAP COVER

Spool Endcap

7шт.

3

8602927

SEAL KIT

For Main Housing (Includes 29 O-rings)

1шт.

4

84351618

HEX SOC SCREW,M6 x 16mm

14шт.

5

8602924

CARTRIDGE

Piston, Pilot Shuttle, M12 x 1,5

5шт.

6

47728029

SPRING

Centering

8шт.

7

47728035

RETAINER

Centering Spring

8шт.

8

87347209

SPOOL

Boom (A2, B2)

1шт.

9

87347210

SPOOL

Bucket (A1, B1)

3шт.

10

87311762

COVER

Spool Endcap

1шт.

11

87311766

PLUG

2шт.

12

47727996

SCREW

Hex Socket; M6 x 105

2шт.

13

8604578

CHECK VALVE

Throttle

1шт.

14

87311768

SPRING

Compression for Float

1шт.

15

84351625

SEAL KIT

3шт.

16

84351622

SPOOL

Option (A3, A4, B3, B4)

2шт.
