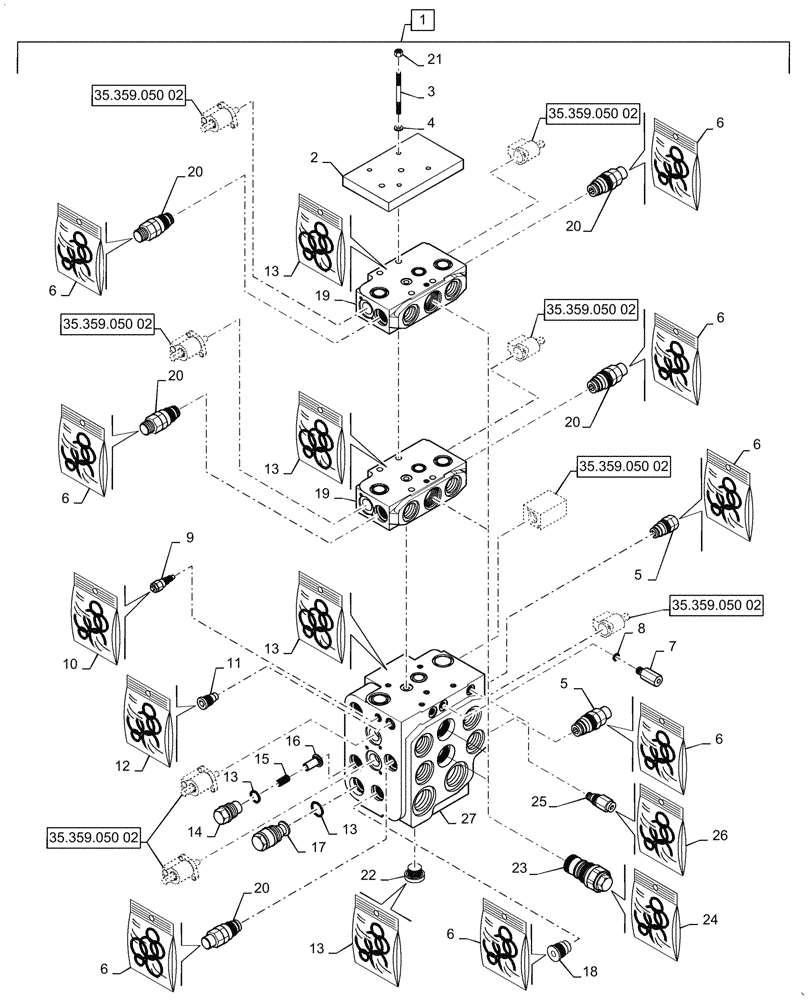

Запчасти Case 921G (35.359.030[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

1

84240722

VALVE

Four Spool, Z-bar / XR / LR, Incl. 1 - 27

1шт.

2

84351609

COVER PLATE

Endcap

1шт.

3

47728062

STUD

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

47729048

VALVE

Anti- Cavitation

1шт.

6

47728011

SEAL KIT

Relief and Anti-Cavitation

8шт.

7

8602899

HYDRAULIC VALVE

Pilot Pressure Reducing

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

1шт.

9

8602925

VALVE PRESSURE RELIE

Pressure Relief Valve

1шт.

10

8602926

SEAL KIT

Pressure Relief valve

1шт.

11

84351624

FLOW CONTROL VALVE

Flow Limiting Valve

1шт.

12

8602916

SEAL KIT

Flow Limiting Valve

1шт.

13

8602927

SEAL KIT

For Main Housing (Includes 29 O-rings)

1шт.

14

47728040

SCREW

Locking

2шт.

15

47728044

SPRING

Compression

2шт.

16

8602920

CONE

2шт.

17

8602912

HYDRAULIC VALVE

Anti-Cavitation Check

1шт.

18

47729047

SCREW

1шт.

19

NSS

NOT SOLD SEPARAT

Block, Incl in 1

2шт.

20

84351623

VALVE PRESSURE RELIE

Combined Port Relief and Anti-Cavitation Valve

6шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

22

47728000

SCREW

M33 x 2; Locking

2шт.

23

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation Valve

4шт.

24

47728007

SEAL KIT

Pilot Relief and Anti-Cavitation

4шт.

25

8602913

HYDRAULIC VALVE

Flow Limiting Valve

1шт.

26

8602914

SEAL KIT

Flow Limiting

1шт.

27

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.
