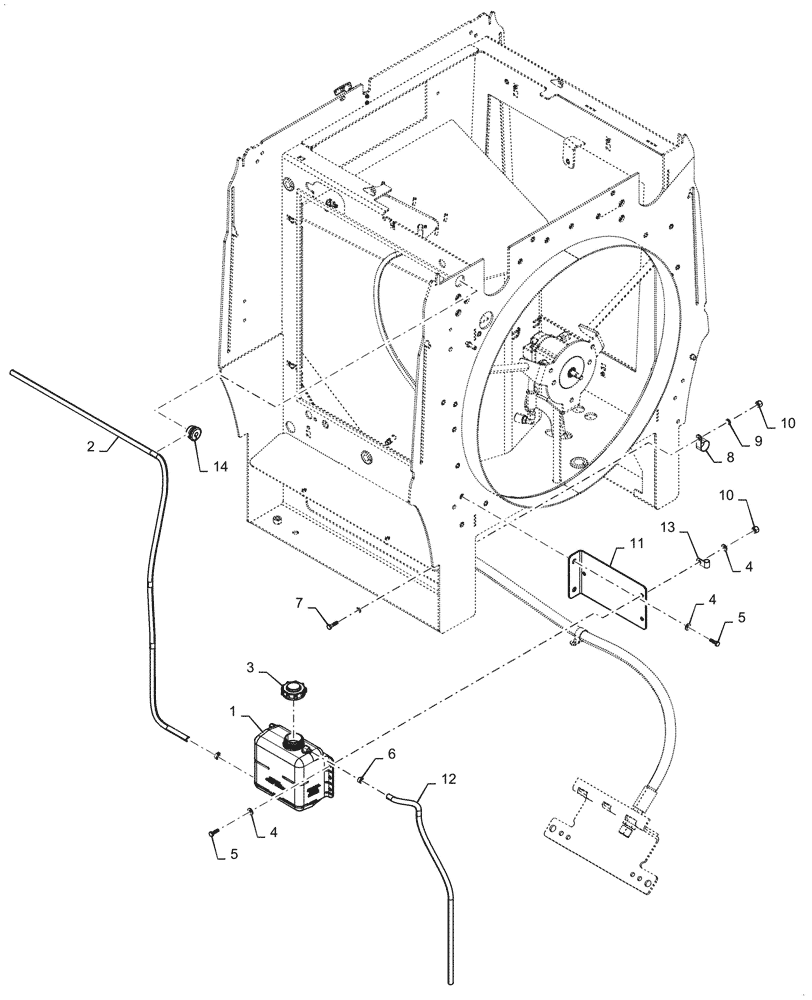

Запчасти Case 921G (35.300.040[03]) - COOLANT RECOVERY SYSTEM (35) - HYDRAULIC SYSTEMS

1

A184395

RESERVOIR

Coolant Recovery

1шт.

2

307149A1

HOSE,7.9 mm ID x 1676.40 mm

Recovery Bottle

1шт.

3

1547924C1

CAP

Reservoir

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

2шт.

7

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

11

87585139

BASE PLATE

Coolant Overflow

1шт.

12

87541330

HOSE,7.90 mm ID x 695.00 mm

Drain

1шт.

13

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

14

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.
