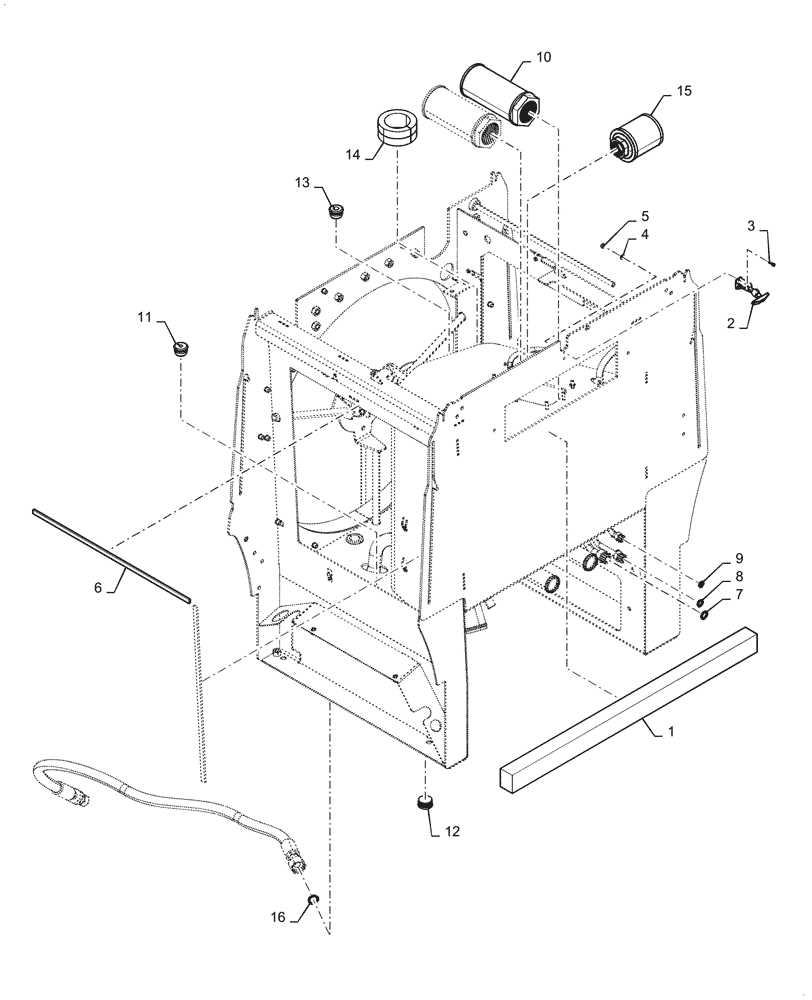

Запчасти Case 921G (35.300.040[02]) - HYDRAULIC RESERVOIR FILTER (35) - HYDRAULIC SYSTEMS

1

47684473

SEAL

Cooling Frame, Foam

1шт.

2

384774A1

LATCH

Flexible Draw

1шт.

3

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

5

824-1405

NUT,M5, Cl 5

2шт.

6

47935985

SEAL

Oil Coolers

4шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

L128515

STRAINER ELEMENT

Hydraulic Filter

2шт.

11

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

12

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

13

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

14

8500167

SEAL

Charge Air Tubes

1шт.

15

47575681

FILTER STRAINER

1шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
