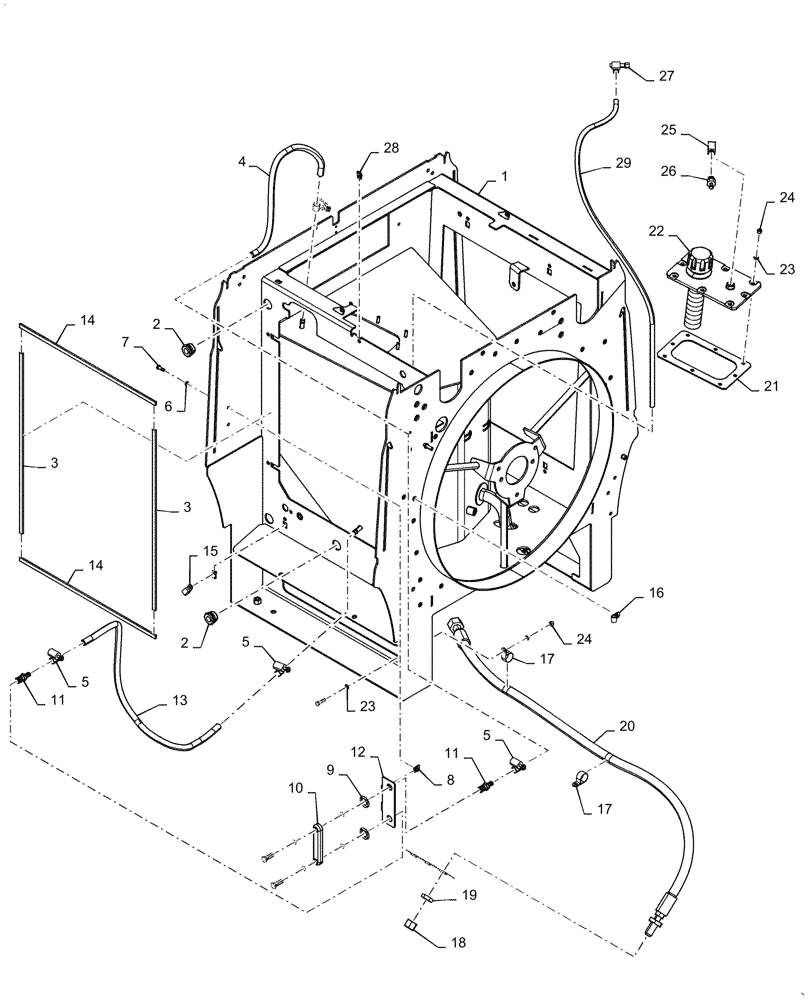

Запчасти Case 921G (35.300.040[01]) - HYDRAULIC RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

47935726

FRAME

Cooling Frame, CNH Black

1шт.

2

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

3

8500136

SEAL

Radiator Side

2шт.

4

47471712

HOSE

Sight Gauge, Upper

1шт.

5

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

6

892-11008

LOCK WASHER,8mm ID

3шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

8

833-40408

NUT,M8, U

2шт.

9

131-141

PUSH-ON NUT,.74", Push-on

2шт.

10

86988366

SIGHTGLASS

1шт.

11

76086829

HYD CONNECTOR

Fitting, Sight Gauge

2шт.

12

47577217

BRACKET

Sight Gauge

1шт.

13

47471713

HOSE

Sight Gauge, Lower

1шт.

14

87312068

OIL SEAL

Oil Coolers, Header

2шт.

15

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

17

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

18

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

19

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

20

84240223

HOSE,19.05mm ID x 1592mm L

Hydraulic Drain

1шт.

21

379587A2

GASKET

Hydraulic Tank

1шт.

22

8606005

CAP

Hydraulic Tank

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

25

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

26

8606006

VALVE, CHECK

1шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

28

84346910

SPRING NUT,M8

1шт.

29

87549248

HOSE,9.50 mm ID x 1130.00 mm

Breather, Hydraulic Tank

1шт.
