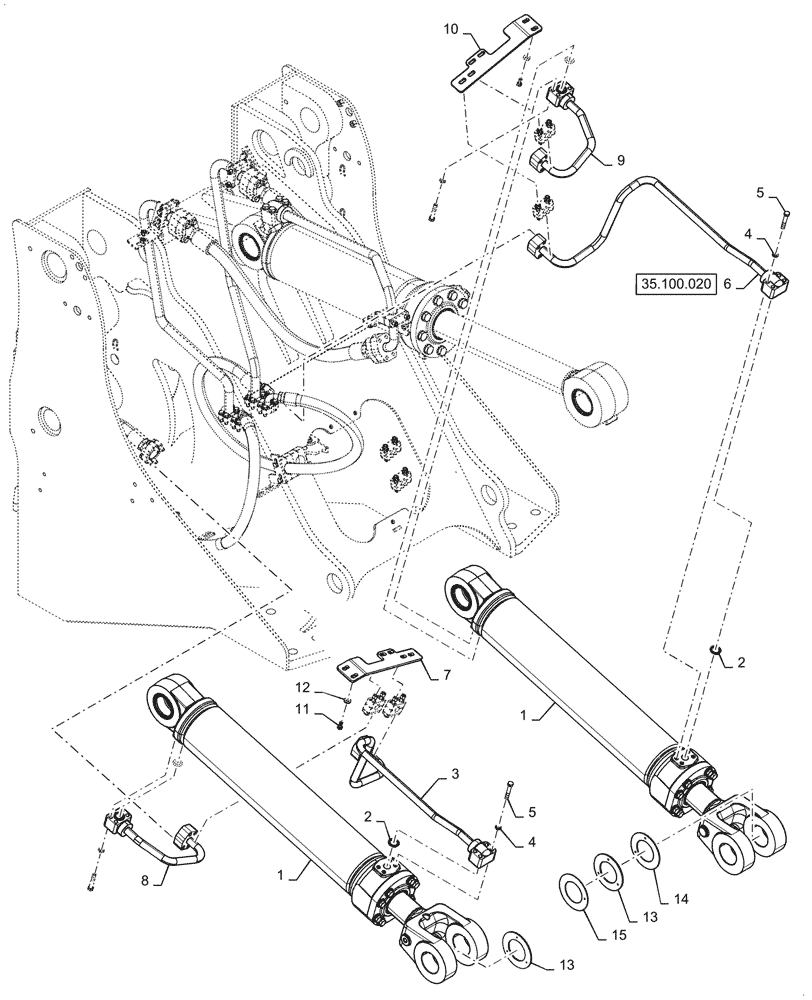

Запчасти Case 921G (35.100.010[01]) - LIFT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84251977

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 845.7mm Stroke

Lift Cylinder

2шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3шт.

3

48010238

TUBE

Lift Cylinder Rod, RH, 1332mm L

1шт.

4

892-11012

LOCK WASHER,M12

33шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

16шт.

6

48010245

TUBE

Lift Cylinder Rod, LH, 1332mm L

1шт.

7

48010262

BRACKET

Right Lift Tube Mount

1шт.

8

48010241

TUBE

Lift Cylinder Base, RH, 525mm L

1шт.

9

48010248

TUBE

Lift Cylinder Base, LH, 524mm L

1шт.

10

48010261

BRACKET

Left Lift Tube Mount

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

13

87373120

SHIM,83mm ID x 142mm OD x 3.8mm Thk

1шт.

14

87373119

SHIM,83.9mm ID x 142mm OD x 2.5mm Thk

1шт.

15

87373118

SHIM,83.9mm ID x 142mm OD x 1.8mm Thk

1шт.
