(33.204.010) - VAR - 424775, 424235 - FRONT AXLE BRAKE ASSEMBLY

Запчасти Case 921G (33.204.010) - VAR - 424775, 424235 - FRONT AXLE BRAKE ASSEMBLY (33) - BRAKES & CONTROLS

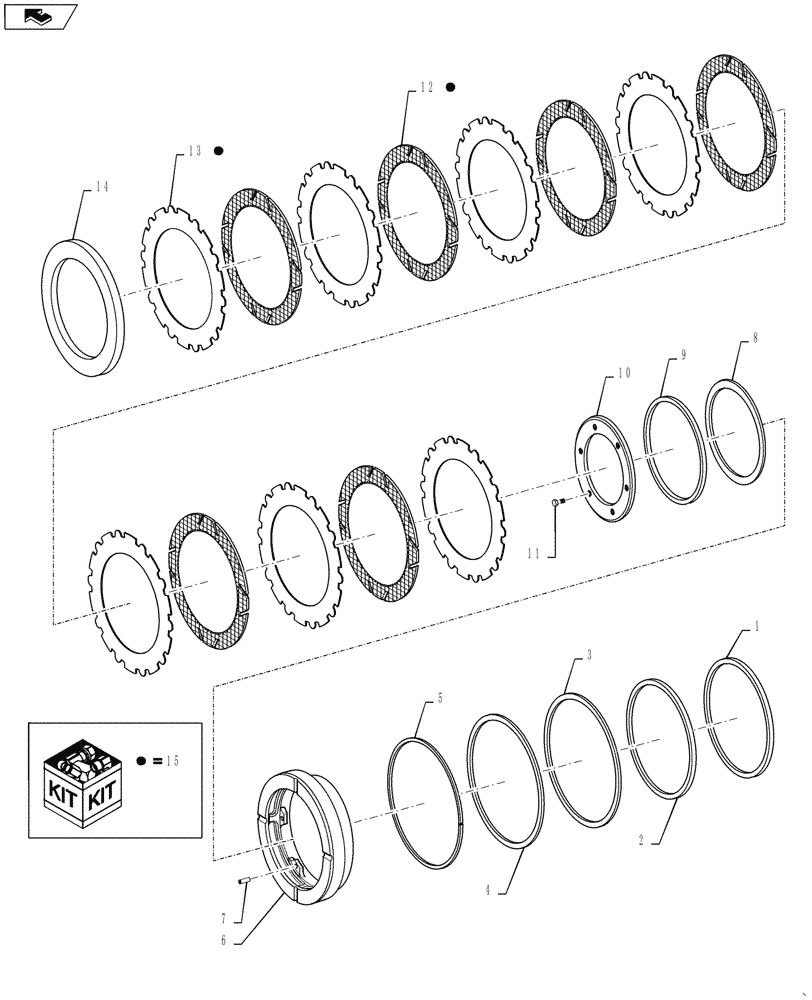

Схема запчастей Case 921G - (33.204.010) - VAR - 424775, 424235 - FRONT AXLE BRAKE ASSEMBLY (33) - BRAKES & CONTROLS
6
12
15
15
10
9
1
4
home
7
3
13
2
15
15
8
14
11
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8603577

RING

Piston Seal Support

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8605315

SEAL

1шт.

4

8603579

RING

Piston Seal Support

1шт.

5

47964987

PISTON

Brake Piston

1шт.

6

84329420

PISTON

1шт.

7

87743218

PIN

Slotted

6шт.

8

84329424

CUP WASHER

1шт.

9

84329425

SPRING CUP

1шт.

10

84329427

PROTECTIVE COVER

1шт.

11

87743747

SCREW,Hex

Hex

6шт.

12

NSS

NOT SOLD SEPARAT

Available in Kit Only, Incl in 15

6шт.

13

NSS

NOT SOLD SEPARAT

Available in Kit Only, Incl in 15

7шт.

14

84329423

SHIM

ZF 4474.353.117 Check ZF number on part to ensure proper shim being used

1шт.

14

84355094

SHIM

ZF 4474.353.140 Check ZF number on part to ensure proper shim being used

1шт.

15

84573602

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 921F With Open Differential Rear Axle

1шт.

15

84573624

SERVICE KIT

Brake Service Kit, One Kit Per Axle, 921F With Front Differential Locking and Open Differential Axles

1шт.
