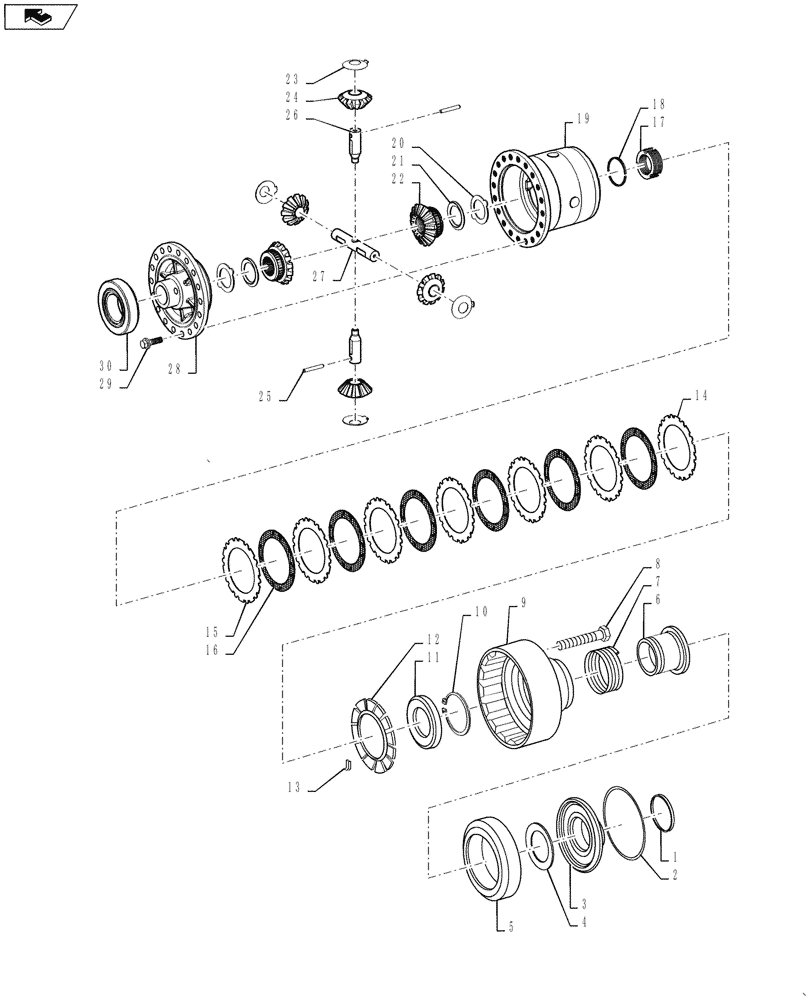

Запчасти Case 921G (25.102.020[01]) - VAR - 424235 - FRONT AXLE DIFFERENTIAL, LOCKING (25) - FRONT AXLE SYSTEM

1

84354338

O-RING

1шт.

2

84354125

O-RING

1шт.

3

84354122

PISTON

1шт.

4

84354339

ROLLER CAGE BEARING

1шт.

5

48011026

BEARING, ROLLER, CYL

1шт.

6

84354340

SLEEVE

Sliding

1шт.

7

84354342

COMPRESSION SPRING

1шт.

8

84354121

HEX SOC SCREW

16шт.

9

84354120

CLUTCH HOUSING

1шт.

10

84354716

CIRCLIP

1шт.

11

84354718

PRESSURE RING

1шт.

12

84354119

CAGE

1шт.

13

84353934

LEVER

12шт.

14

84353933

PRESSURE RING

1шт.

15

84353928

CLUTCH DISC,1.2mm Thk

CLUTCH DISK Outer

10шт.

15

84353929

CLUTCH DISC,1.3mm Thk

CLUTCH DISK Outer

1шт.

15

84353930

CLUTCH DISC,1.4mm Thk

CLUTCH DISK Outer

1шт.

16

84353932

CLUTCH DISC

CLUTCH DISK Inner

10шт.

17

84355105

CARRIER

1шт.

18

84354722

SNAP RING

1шт.

19

84354791

HOUSING

Differential

1шт.

20

120017A1

THRUST WASHER

Thrust

2шт.

21

120019A1

THRUST WASHER

Thrust

2шт.

22

384508A1

GEAR

2шт.

23

84353924

THRUST WASHER

4шт.

24

120018A1

PINION

Differential Gear

4шт.

25

47963872

SLOTTED PIN

2шт.

26

84353926

DIFFERENTIAL

Axle Pinion

2шт.

27

84353925

DIFFERENTIAL

Axle Pinion

1шт.

28

47963870

COVER

Housing

1шт.

29

184716A1

SCREW

20шт.

30

47963874

TAPERED BEARING

1шт.
