Запчасти Case 821G (21.105.010) - VAR - 424224, 424225 - LUBRICATION LINES (21) - TRANSMISSION

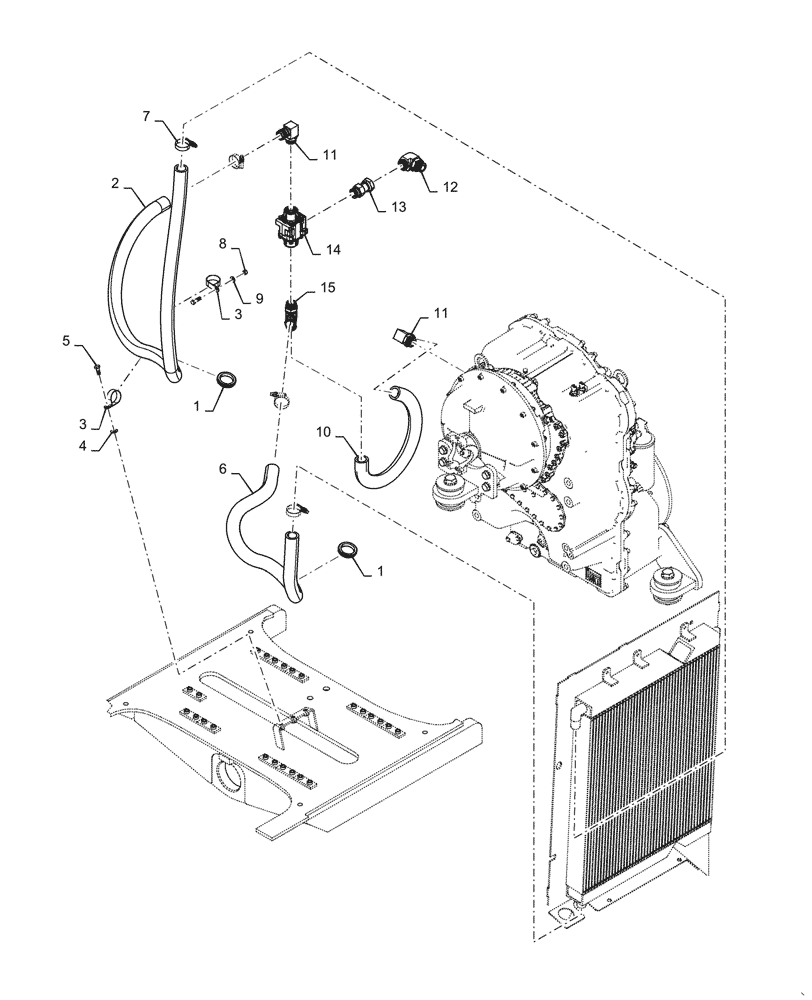

Схема запчастей Case 821G - (21.105.010) - VAR - 424224, 424225 - LUBRICATION LINES (21) - TRANSMISSION
1
6
1
2
9
8
14
11
4
10
3
3
5
11
12
15
13
7

Артикул

Название

Примечание

Количество

1

84337102

GROMMET

2шт.

2

84306912

HOSE, BULK,31.75mm ID x 2053mm L, SAE 100R4

Cooler to Valve

1шт.

3

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

4шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

84337101

HOSE, BULK

Valve to Cooler

1шт.

7

353036A1

HOSE CLAMP,32mm - 54mm

6шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

10

84306913

HOSE, BULK

Transmission to Valve

1шт.

11

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

2шт.

12

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

13

87672177

HYD CONNECTOR

1шт.

14

84138750

VALVE

Bypass

1шт.

15

84196529

TEE,1-5/16" - 12 ORB x 1-1/4" Hose Barb x 1-1/4" Hose Barb

1шт.

Выбрано товаров: 15
