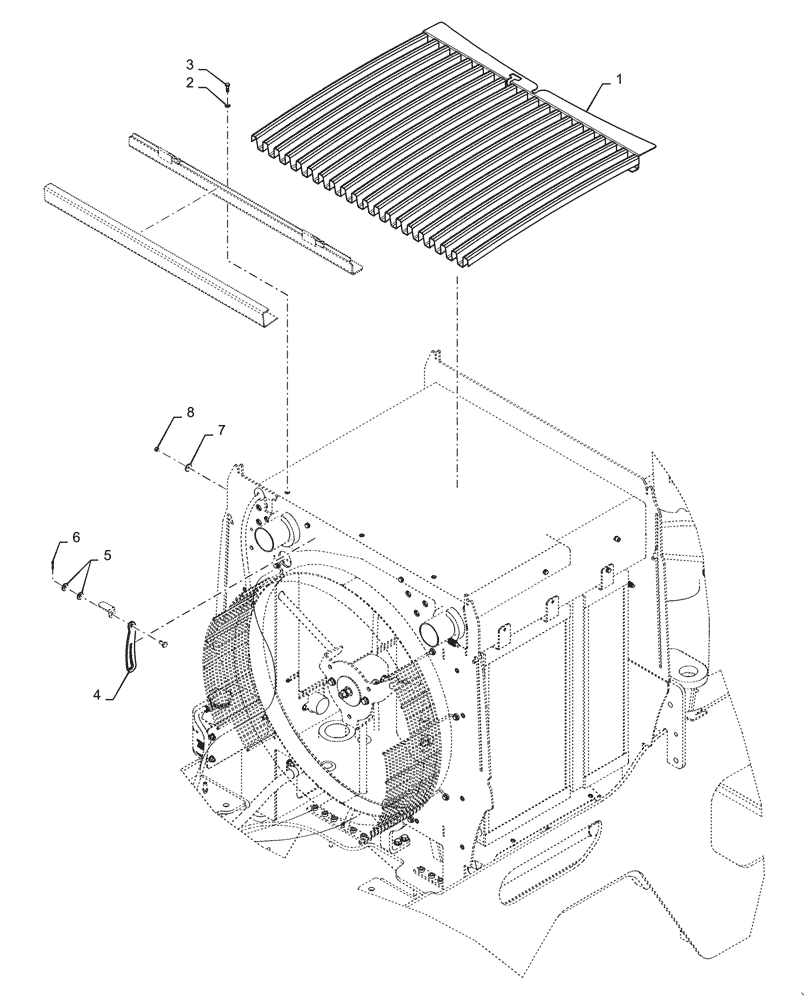

Запчасти Case 821G (10.400.020) - COOLER TOP SCREEN INSTALLATION, STANDARD (10) - ENGINE

1

47636298

SCREEN

Top

1шт.

2

892-11008

LOCK WASHER,8mm ID

3шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

4

47728750

LOCKING BAR

Bar

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

733-3220

COTTER PIN,M3.2 x 20

1шт.

7

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.
