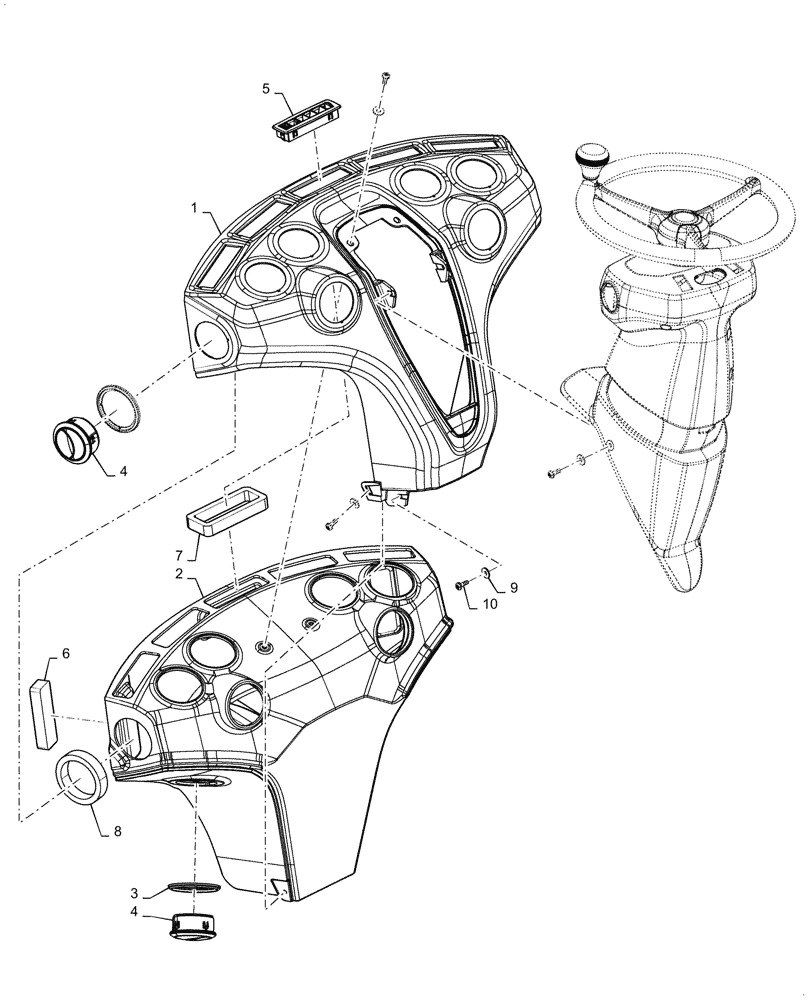

Запчасти Case 821G (90.160.020) - VAR - 734065 - FRONT CONSOLE COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47920285

CONSOLE

Front

1шт.

2

47920309

PLENUM

Air Distribution

1шт.

3

47921667

RING

Louver

10шт.

4

82022331

VENT

Rear

10шт.

5

47735893

LOUVER

Defrost

5шт.

6

47762511

FOAM

Rectangular

3шт.

7

47762510

FOAM

Defrost Louver, Rectangular

5шт.

8

47762480

FOAM

HVAC, Louver, Round

8шт.

9

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

8шт.
