(90.151.010[02]) - VAR - 734058 - 2" SEAT BELT HARDWARE AND MOUNTING

Запчасти Case 821G (90.151.010[02]) - VAR - 734058 - 2" SEAT BELT HARDWARE AND MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

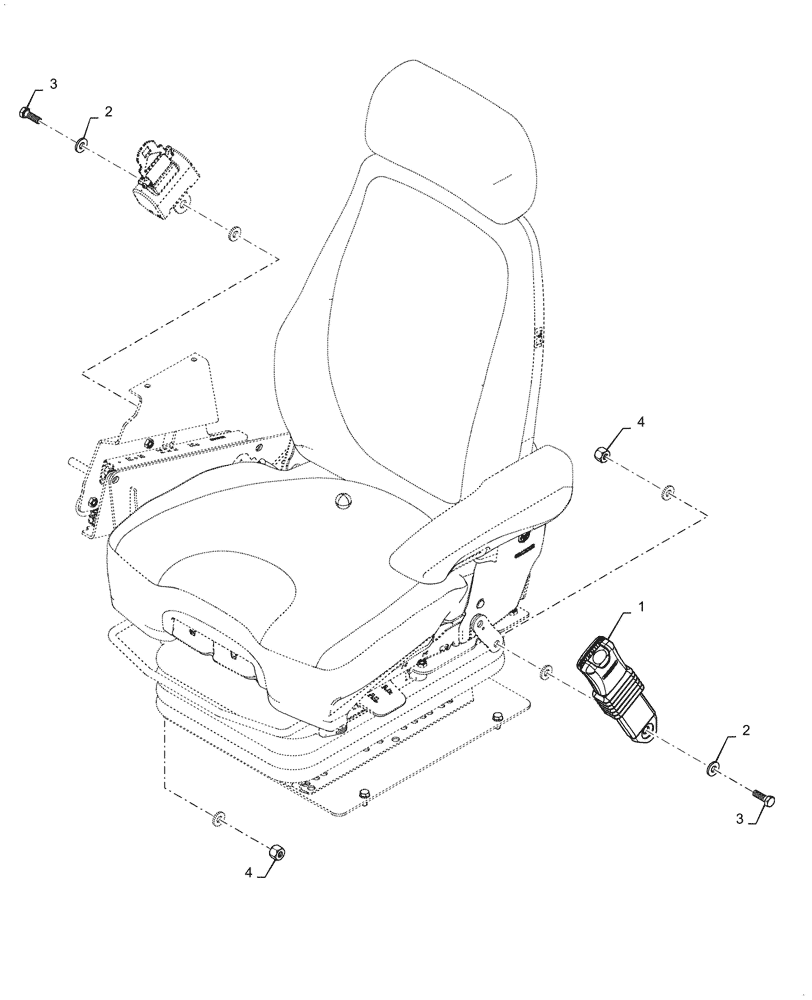

Схема запчастей Case 821G - (90.151.010[02]) - VAR - 734058 - 2" SEAT BELT HARDWARE AND MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
2
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47600159

SEAT BELT,2 inch Wide Belt

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
