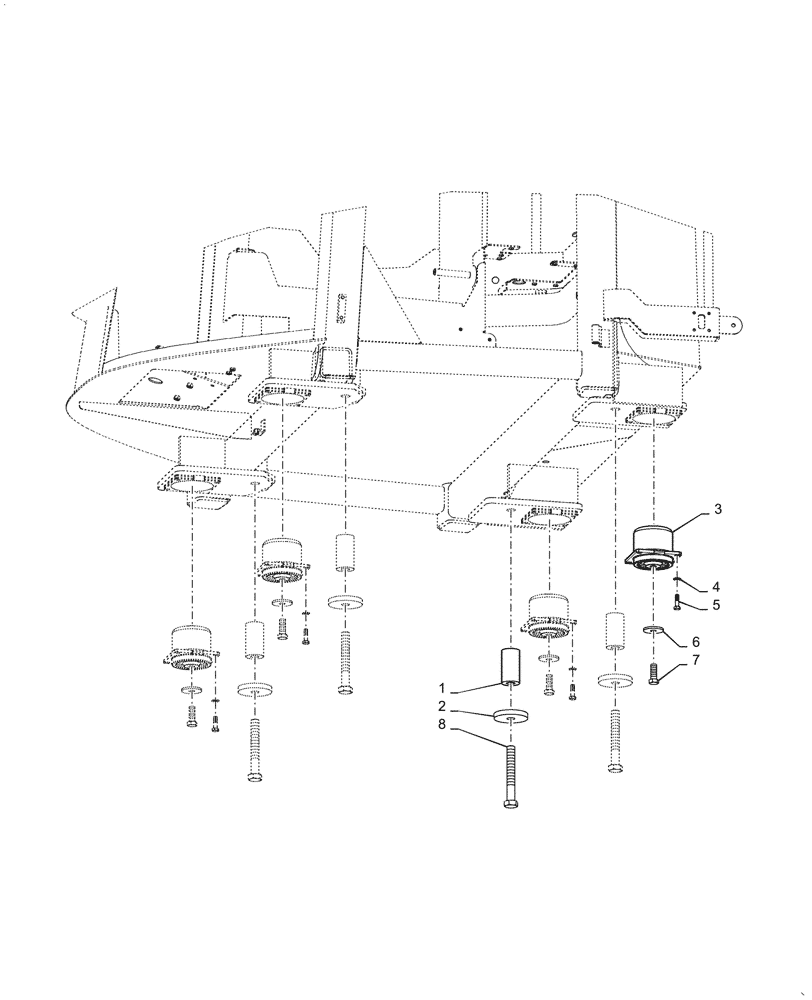

Запчасти Case 821G (90.150.010) - CAB MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47664125

SPACER

Rops Retaining

4шт.

2

47664124

WASHER

Rops Retaining

4шт.

3

47682004

MOUNT

Viscous

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

6

895-30103

WASHER,M16 x 56 x 5

4шт.

7

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

8

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

4шт.
