Запчасти Case 821G (90.124.010[02]) - VAR - 734063, 734073 - SEAT, AIR SUSPENSION SERVICE PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

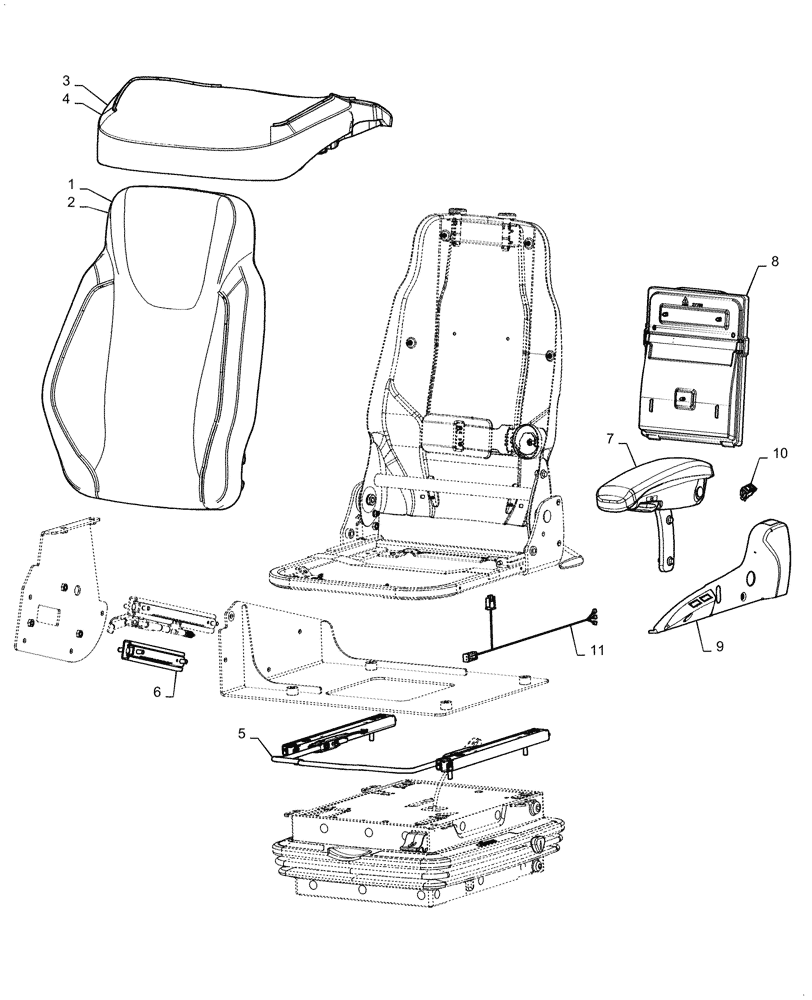

Схема запчастей Case 821G - (90.124.010[02]) - VAR - 734063, 734073 - SEAT, AIR SUSPENSION SERVICE PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
10
2
8
1
11
4
3
5
7
6

Артикул

Название

Примечание

Количество

1

48046607

Service Kit, Back Cushion, Case

KIT

1шт.

1

NSS

NOT SOLD SEPARAT

Back Cushion, Case, Incl in Service Kit 1

1шт.

1

NSS

NOT SOLD SEPARAT

Pan Head Screw #8 x 18, Incl in Service Kit 1

6шт.

2

48046607

Service Kit, Back Cushion, New Holland

KIT

1шт.

2

NSS

NOT SOLD SEPARAT

Back Cushion, New Holland, Incl in Service Kit 2

1шт.

2

NSS

NOT SOLD SEPARAT

Pan Head Screw #8 x 18, Incl in Service Kit 2

6шт.

3

48046610

Service Kit, Seat Cushion, Case

KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in Service Kit 3

1шт.

3

NSS

NOT SOLD SEPARAT

Self Threaded Screw, 1/4-15 x .75, Incl in Service Kit 3

2шт.

4

48046612

Service Kit, Seat Cushion, New Holland

KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in Service Kit 4

1шт.

4

NSS

NOT SOLD SEPARAT

Self Threaded Screw, 1/4-15 x .75, Incl in Service Kit 4

2шт.

5

48046593

Service Kit, Left and Right Hand Adjusters

KIT

1шт.

5

NSS

NOT SOLD SEPARAT

Right Hand Adjuster, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Left Hand Adjuster, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Adjuster Handle, Incl in Service Kit 5

1шт.

5

NSS

NOT SOLD SEPARAT

Nut, Incl in Service Kit 5

2шт.

5

NSS

NOT SOLD SEPARAT

Flange Nut, M8 x 1.25, Incl in Service Kit 5

4шт.

6

48046594

Service Kit, Console Adjusters

KIT

1шт.

6

NSS

NOT SOLD SEPARAT

Latching Adjuster 100mm, Incl in Service Kit 6

1шт.

6

NSS

NOT SOLD SEPARAT

Slave Adjuster Short, Incl in Service Kit 6

1шт.

6

NSS

NOT SOLD SEPARAT

Flange Nut

8шт.

7

48046595

Service Kit, Left Hand Armrest

KIT

1шт.

7

NSS

NOT SOLD SEPARAT

Left Hand Armrest Assemly, Incl in Service Kit 7

1шт.

7

NSS

NOT SOLD SEPARAT

Cap Screw M8 x 1.25, Incl in Service Kit 7

2шт.

8

48046596

Service Kit, Literature Box

KIT

1шт.

8

NSS

NOT SOLD SEPARAT

Literature Box, Incl in Service Kit 8

1шт.

8

NSS

NOT SOLD SEPARAT

Christmas Tree Clip, Incl in Service Kit 8

3шт.

9

48046597

Service Kit, Pivot Cover

KIT

1шт.

9

NSS

NOT SOLD SEPARAT

Left Hand Pivot Cover, Incl in Service Kit 9

1шт.

9

NSS

NOT SOLD SEPARAT

Pan Head Tapping Screw, Incl in Service Kit 9

2шт.

10

48046613

Service Kit, Heater Switch

KIT

1шт.

11

48079484

Service Kit, XP Harness

KIT

1шт.

11

NSS

NOT SOLD SEPARAT

XP Heater Harness, Incl in Service Kit 11

1шт.

11

NSS

NOT SOLD SEPARAT

Tie Wraps, Incl in Service Kit 11

3шт.

Выбрано товаров: 35
