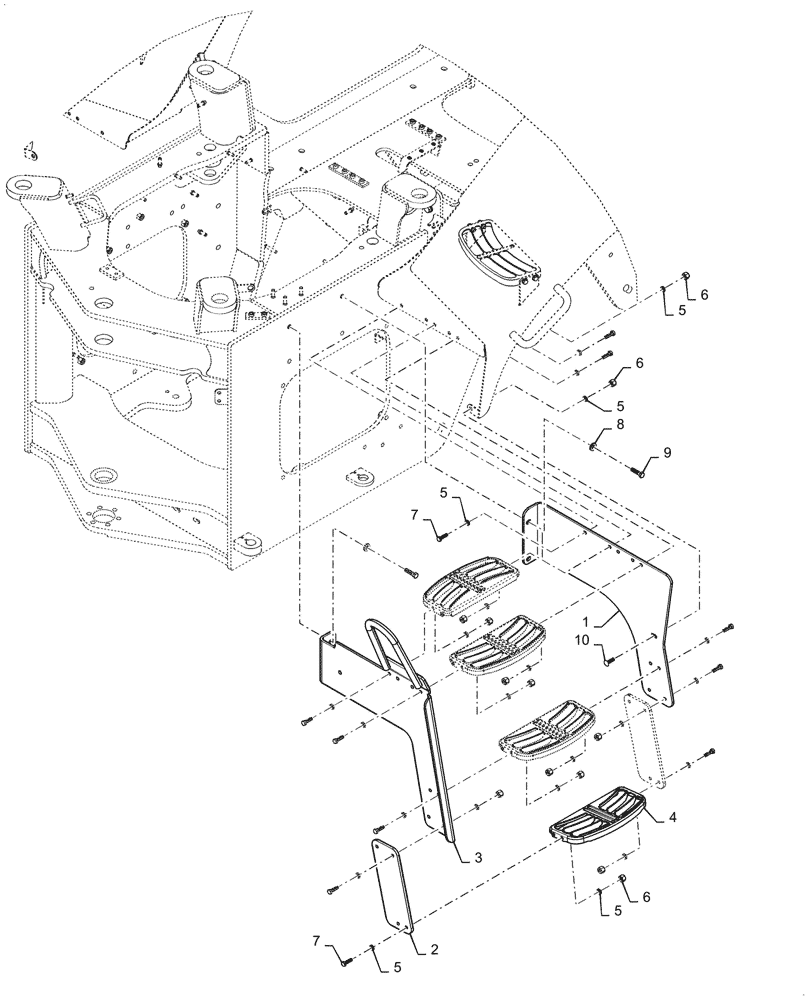

Запчасти Case 821G (90.118.010[01]) - STEP INSTALLATION, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47912919

SUPPORT

Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

47912923

SUPPORT

Front

1шт.

4

47639539

STEP

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

43шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

21шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

10

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

1шт.
