(90.116.050) - WHEEL WELL GUARD

Запчасти Case 821G (90.116.050) - WHEEL WELL GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

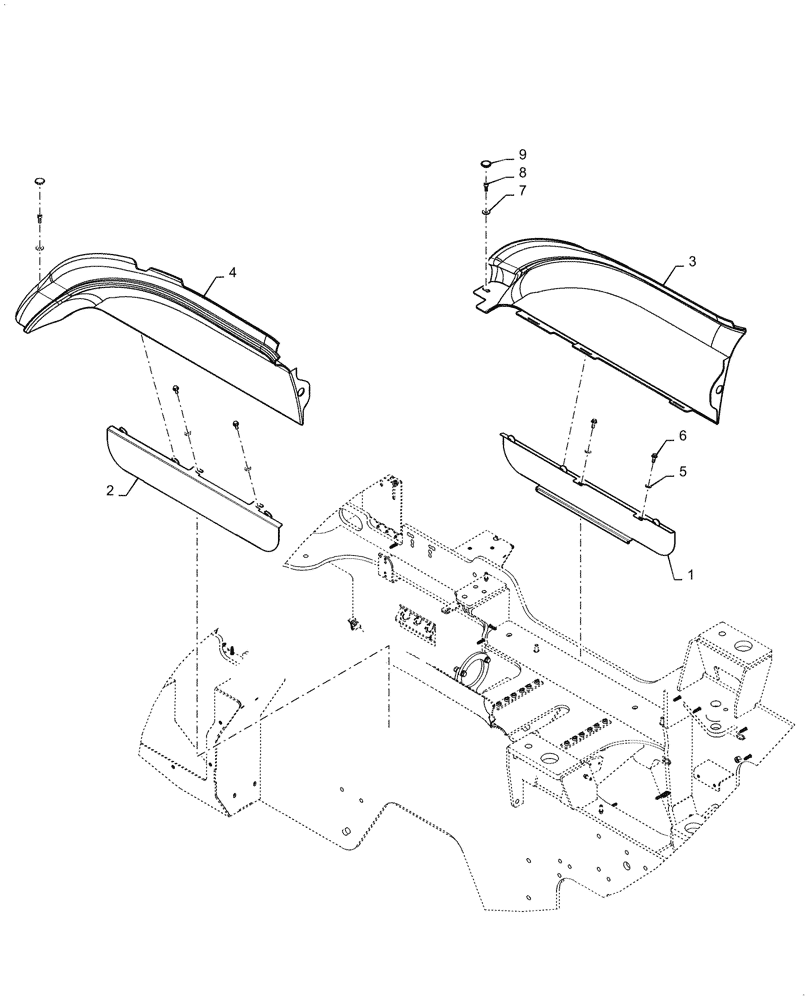

Схема запчастей Case 821G - (90.116.050) - WHEEL WELL GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
6
5
7
4
8
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47919961

GUARD

LH Wheel Well

1шт.

2

47919963

GUARD

RH Wheel Well

1шт.

3

47705929

FENDER

LH Wheel

1шт.

4

47705935

FENDER

RH Wheel

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

7

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

8

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

9

87323866

KNOB

Fluted Black, M10

2шт.
