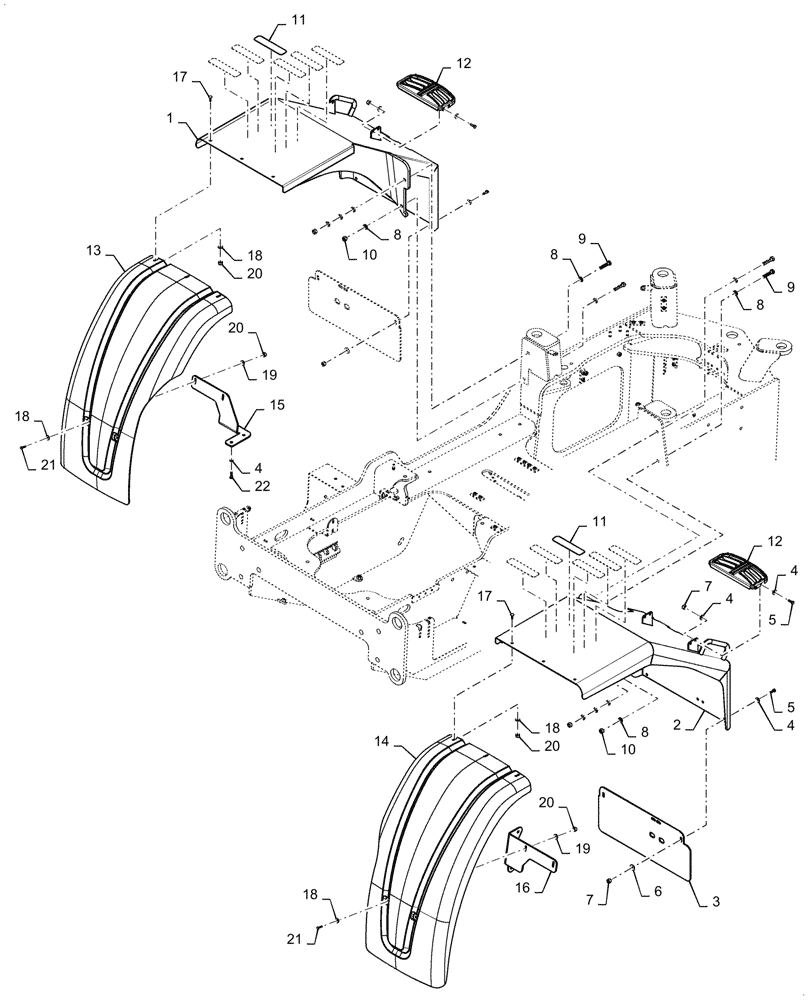

Запчасти Case 821G (90.116.030[03]) - REAR FENDERS, WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47895311

SUPPORT

LH

1шт.

2

47895317

SUPPORT

RH

1шт.

3

47911955

MUDFLAP

Rear

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

22шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

12шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

9

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

10

829-1416

NUT,M16, Cl 10

4шт.

11

D55216

PAD,2" x 9"

12шт.

12

47639539

STEP

2шт.

13

87346956

FENDER

Rear, Wide LH

1шт.

14

87346957

FENDER

Rear, Wide RH

1шт.

15

84316380

BRACKET

Fender, LH

1шт.

16

84316378

BRACKET

Fender, RH

1шт.

17

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

18

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

21

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

22

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.
