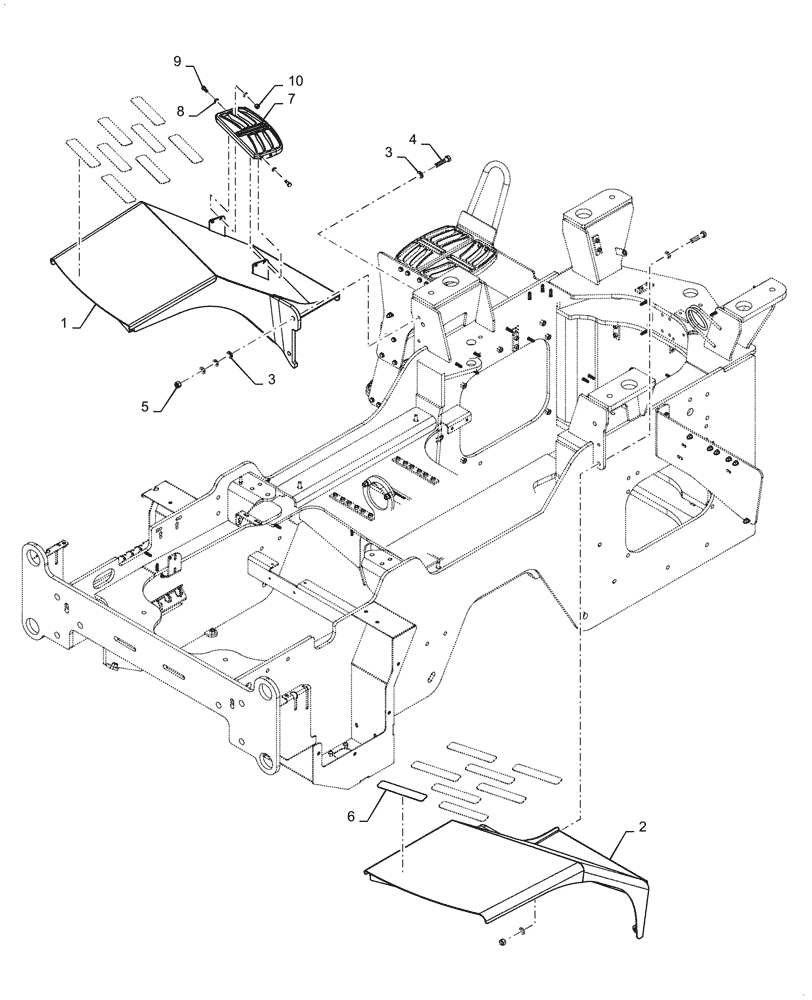

Запчасти Case 821G (90.116.030[01]) - REAR FENDER, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47895927

SUPPORT

LH Platform

1шт.

2

47895939

SUPPORT

RH Platform

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

5

829-1416

NUT,M16, Cl 10

4шт.

6

D55216

PAD,2" x 9"

16шт.

7

47639539

STEP

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
