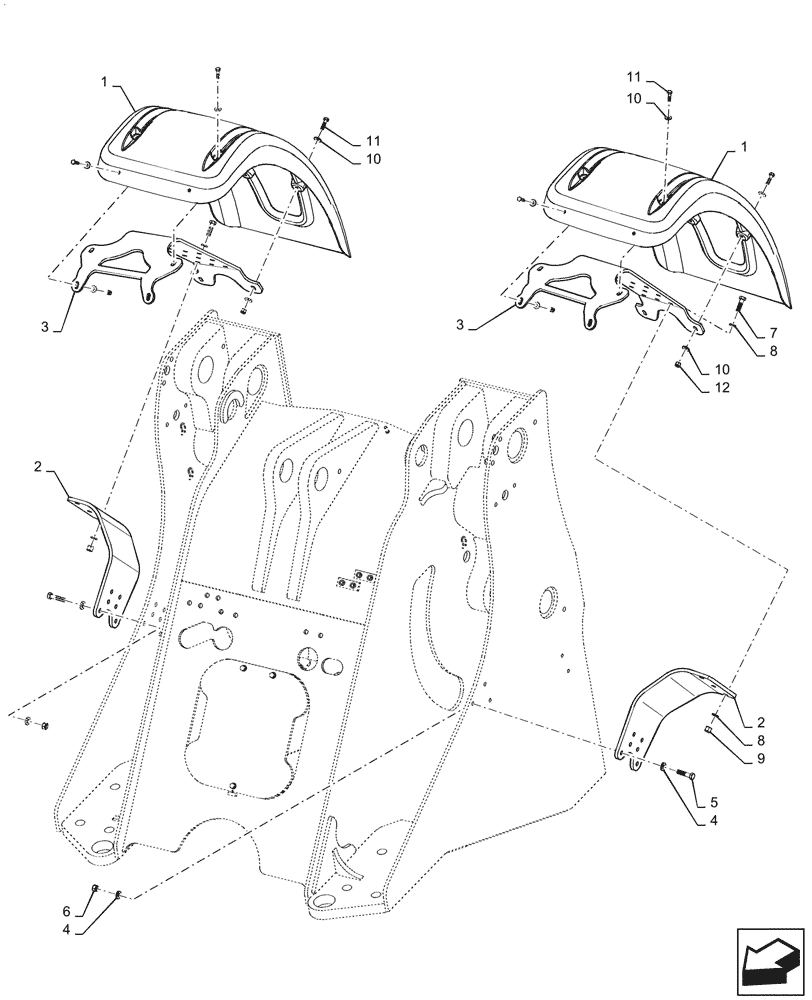

Запчасти Case 821G (90.116.020[01]) - FRONT FENDER INSTALLATION, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87355957

FENDER

Front, Standard

2шт.

2

47902579

BRACKET

Fender

2шт.

3

47958118

BRACKET

Fender

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

6

829-1412

NUT,M12, Cl 10.9

6шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.
