(90.100.020) - VAR - 402018, 402019 - HOOD PANELS

Запчасти Case 821G (90.100.020) - VAR - 402018, 402019 - HOOD PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

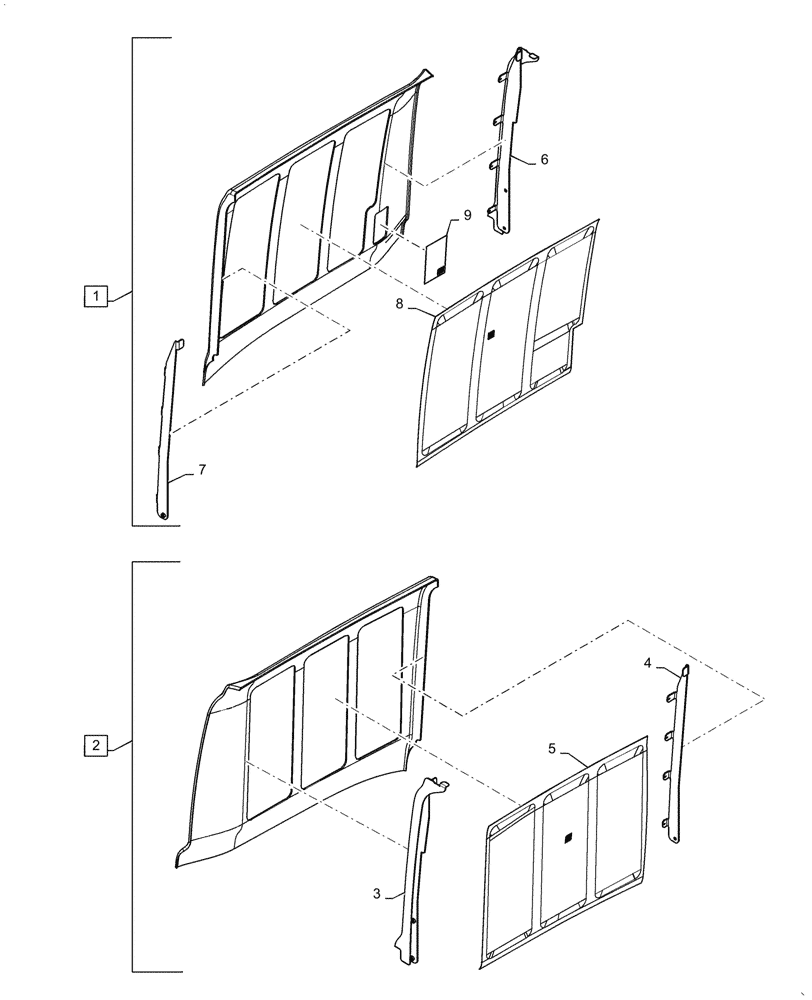

Схема запчастей Case 821G - (90.100.020) - VAR - 402018, 402019 - HOOD PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
5
9
4
3
1
6
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47777689

PANEL

LH, Tan

1шт.

1

47777640

SIDE PANEL

LH, NH Yellow

1шт.

2

47777696

PANEL

RH, Tan

1шт.

2

47777572

SIDE PANEL

RH, NH Yellow

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Sliding Panel, Black, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Plate, Rear Sliding Panel, Black,Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Screen, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Sliding Panel, Black, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Rear Sliding Panel, Black, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Screen, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Sight Guage, Incl in 1

1шт.
