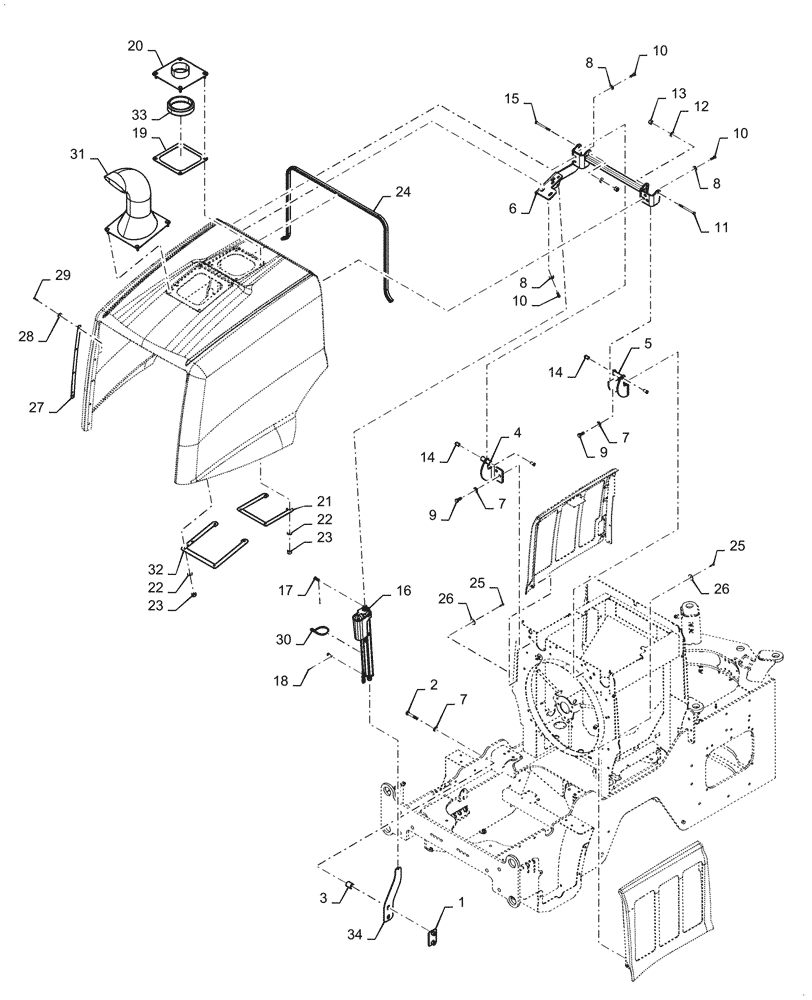

Запчасти Case 821G (90.100.010) - ENGINE HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47386214

ANCHOR

Jack Base

1шт.

2

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

3

47772550

SPACER,16.5mm ID x 38mm OD x 43.75mm L

2шт.

4

47425352

HINGE

Hood Mount, LH

1шт.

5

47488716

HINGE

Half, RH

1шт.

6

47488710

HINGE

Hood Mount

1шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

7шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

9

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

5шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

11

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

382495A1

BUSHING

Flange

4шт.

15

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

1шт.

16

47429542

ACTUATOR

279mm

1шт.

17

728-1240

CLEVIS PIN,M12 x 40

2шт.

18

733-3220

COTTER PIN,M3.2 x 20

2шт.

19

47417284

SEAL

Hood, Intake Plate

1шт.

20

47399166

PIPE

Intake

1шт.

21

8500382

PLATE

Intake Backing

1шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

24

8605846

RUBBER SEAL,2385mm L

1шт.

25

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

6шт.

26

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

27

47490881

PLATE

Grill Backing

2шт.

28

892-11006

LOCK WASHER,M6

8шт.

29

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

8шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

31

47417626

EXHAUST SYSTEM PIPE

Pipe

1шт.

32

47397265

PLATE

Exhaust Backing

1шт.

33

8500403

SEAL

Air Cleaner

1шт.

34

47770602

SUPPORT

Hood Strut

1шт.
