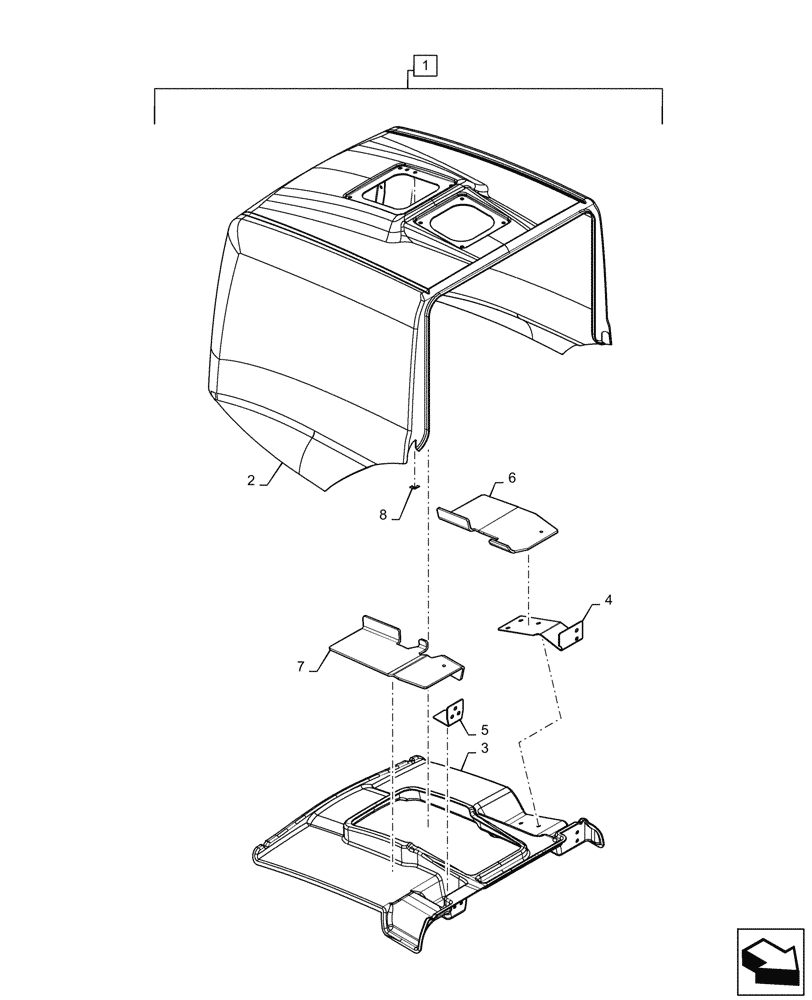

Запчасти Case 821G (90.100.010[01]) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47490035

ENGINE HOOD

Tan, NA / EU

1шт.

1

84270538

ENGINE HOOD

Tan, ROW

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Hood Outer Shell, Incl W/ Ref. 1

1шт.

3

NSS

NOT SOLD SEPARAT

Engine Hood, Inner Structure, Bonded, Incl W/ Ref. 1

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Hood Support, Bonded, Incl W/ Ref. 1

1шт.

5

NSS

NOT SOLD SEPARAT

Bracket Inner, Bonded, Incl W/ Ref. 1

1шт.

6

NSS

NOT SOLD SEPARAT

LH Stiffening Plate, Incl W/ Ref. 1

1шт.

7

NSS

NOT SOLD SEPARAT

RH Stiffening Plate, Incl W/ Ref. 1

1шт.

8

329946A1

CLIP

Tie Wrap

1шт.
