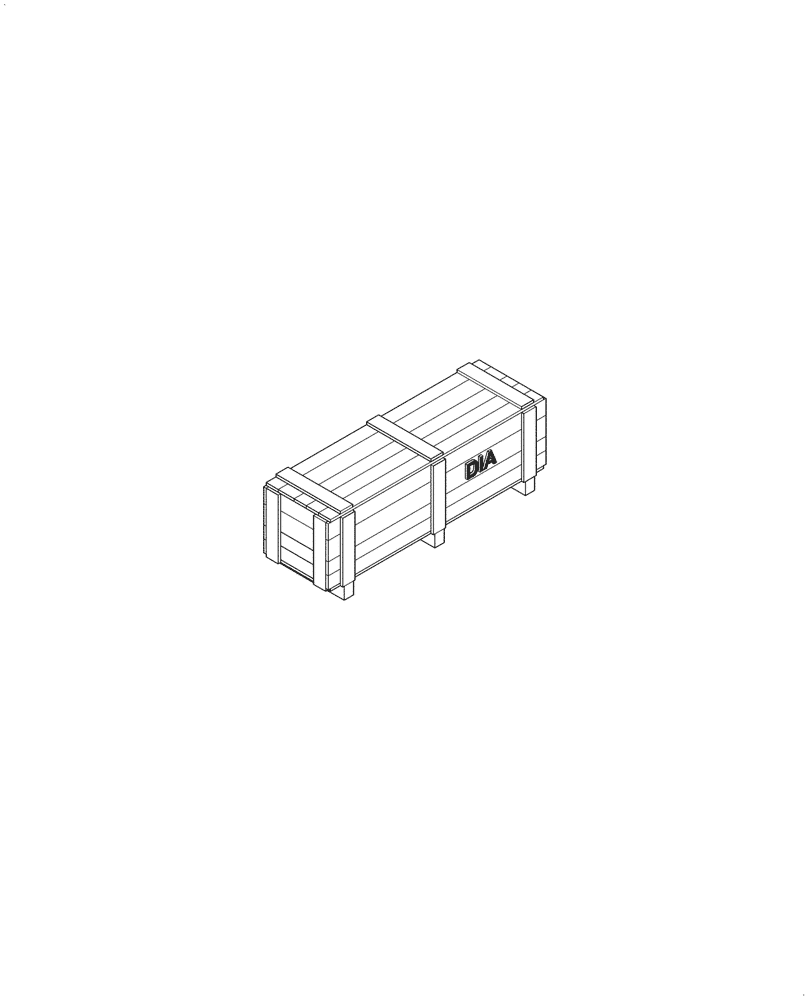

Запчасти Case 821G (88.100.55[02]) - DIA KIT, REMOTE JUMP POST (88) - ACCESSORIES

1

47977942

KIT

DIA KIT, Jump Start Post, Incl 2 - 25

1шт.

2

47977944

Instruction Sheet

1шт.

3

425-105

NUT,5/16"-18, G5

2шт.

4

47524286

INSULATOR

2шт.

5

47728889

LOCK

1шт.

6

47795303

DECAL

Master Disconnect

1шт.

7

47871375

CABLE

Neg to Jump

1шт.

8

47871378

CABLE

Pos to Jump

1шт.

9

47882145

STUD

2шт.

10

47906807

COVER ASSY

Jump Post

1шт.

11

47971192

BRACKET

Hinge, Switch and Jump Post

1шт.

12

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

15

84183142

DOOR SEAL

Access Door, Right

1шт.

16

84258928

TERMINAL CONNECTOR

Jump Start, Neg Long

1шт.

17

84391496

TRIM

Quick Edge

1шт.

18

84391497

TRIM

Quick Edge

1шт.

19

84404565

IMPORTANT DECAL

Danger Explosion Hazard

1шт.

20

84405137

DECAL

24V Positive

1шт.

21

84405148

DECAL

24V Negative

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

24

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.
