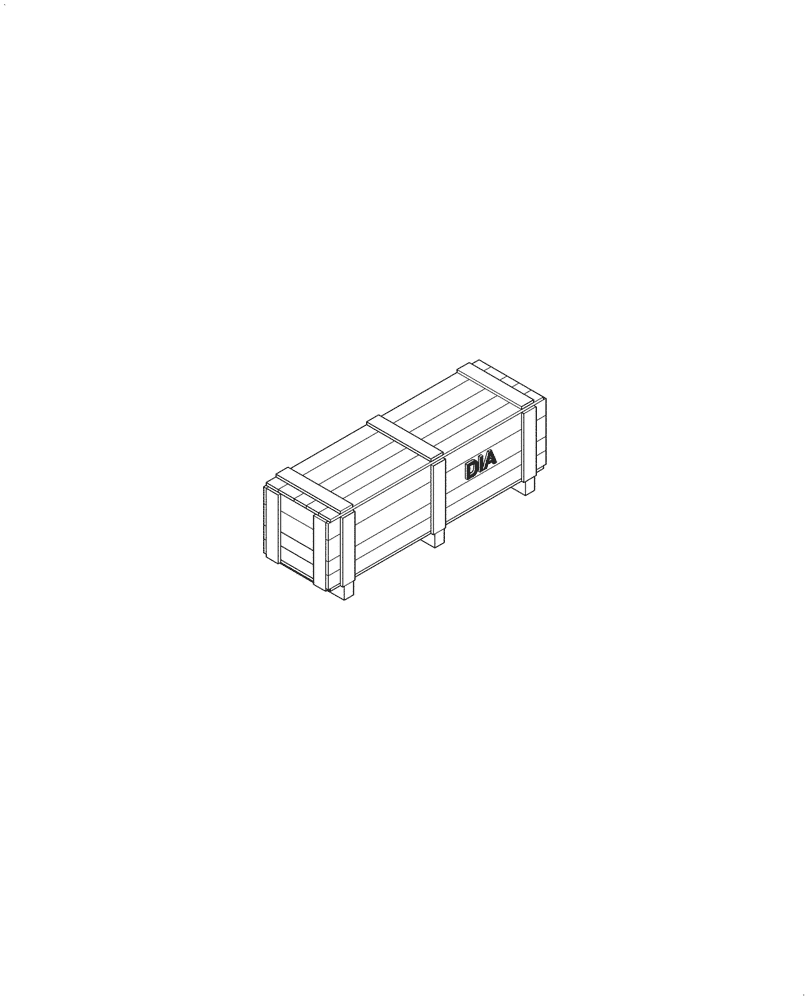

Запчасти Case 821G (88.100.39[01]) - DIA KIT, SKID PLATE (88) - ACCESSORIES

1

48044378

Skid Plate, Incl 2 - 19

KIT

1шт.

2

48044398

INSTRUCTION

1шт.

3

48028906

PLATE

Transmission Guard

1шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

5

892-11012

LOCK WASHER,M12

11шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

5шт.

7

84370857

SKID PLATE

1шт.

8

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

10

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

11

87593947

BRACKET

Skid Plate

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

892-11008

LOCK WASHER,8mm ID

4шт.

16

372947A1

SPACER

Bracket

4шт.

17

47400206

GUARD

Access

1шт.

18

895-15012

WASHER,M12 x 28 x 2.5

4шт.

19

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
