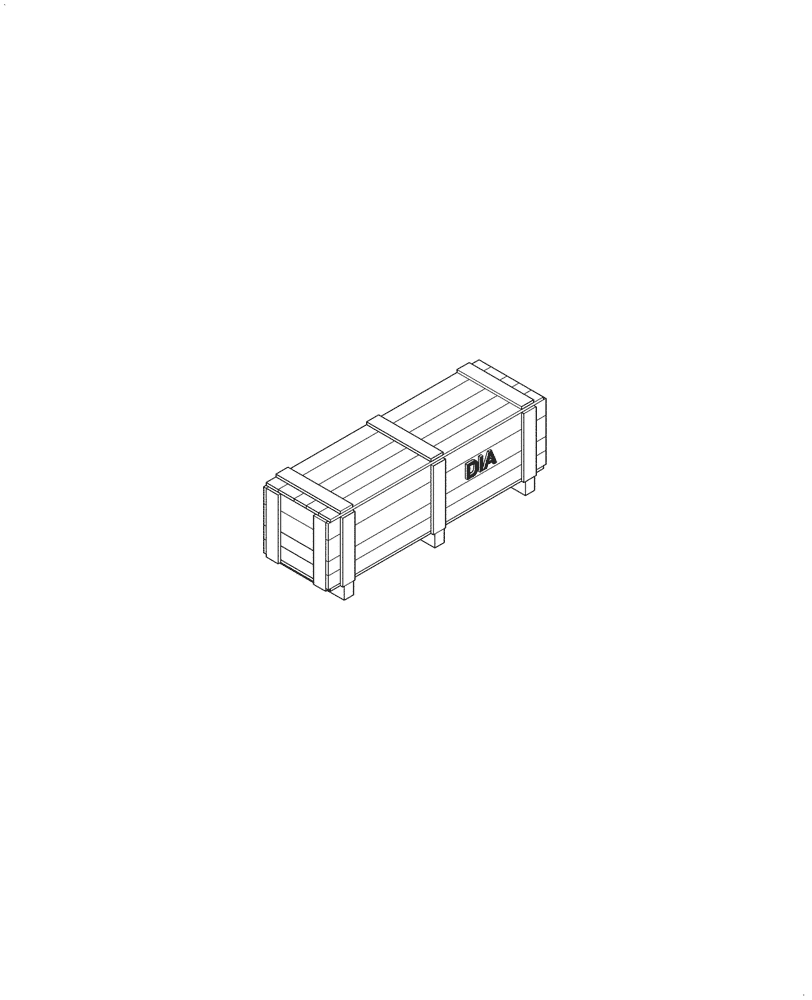

Запчасти Case 821G (88.100.35[06]) - DIA KIT, VARIABLE SPEED REVERSIBLE FAN (88) - ACCESSORIES

1

47686571

KIT

DIA KIT, Variable Speed Reversible Fan, Incl 2 - 8

1шт.

2

47925838

INSTRUCTION

Instruction Sheet

1шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

28шт.

4

84401774

MOUNTING PLATE

Fan Valve

1шт.

5

8500565

HYDRAULIC VALVE

Fan Speed and Reverser

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

1шт.
