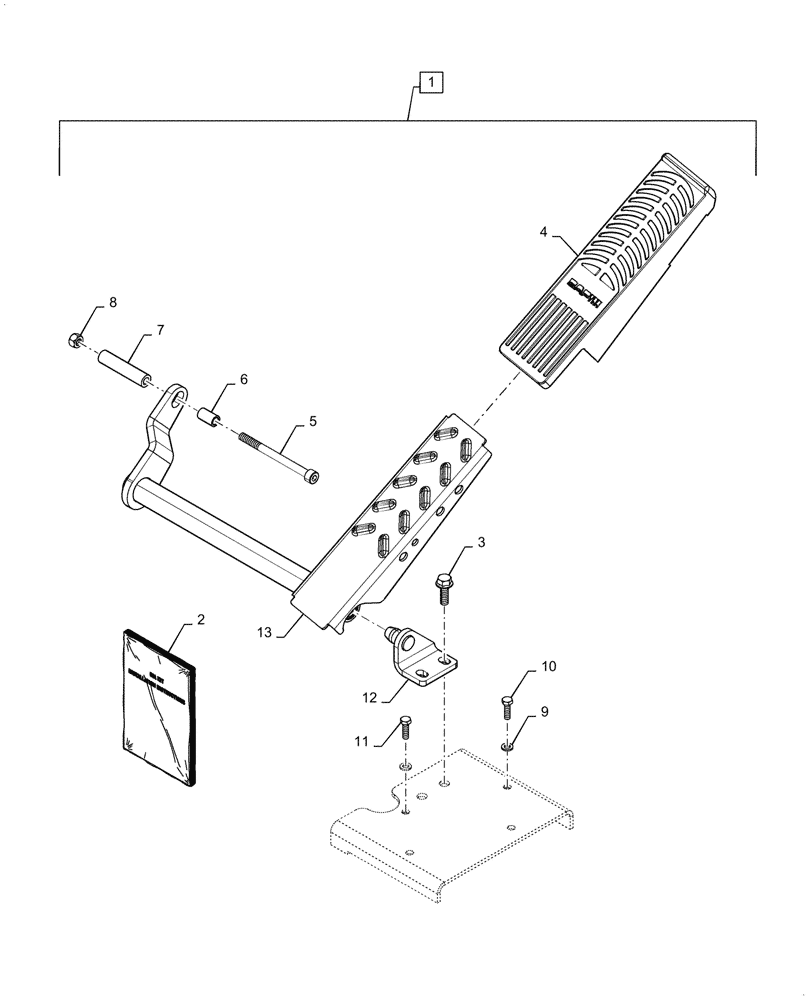

Запчасти Case 821G (88.100.33[01]) - DIA KIT, RIGHT HAND BRAKE PEDAL (88) - ACCESSORIES

1

47686363

KIT

DIA KIT, Right Hand Brake Pedal, Incl 2 - 13

1шт.

2

47920485

INSTRUCTION

Instrcution Sheet

1шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

4

84331795

SHIELD

Cover, Brake Pedal, RH

1шт.

5

864-8100

SCREW,M8 x 100mm, Cl 8.8

1шт.

6

84390359

SPACER

1шт.

7

84390363

SPACER

1шт.

8

437013

NUT

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

11

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

12

47920096

BRACKET

Mount, Right Side Brake Pedal

1шт.

13

47640144

PEDAL

Pedal, With Shaft Assembly

1шт.
