(82.100.040) - VAR - 424249, 424250, 734006, 734010, 734011 - ACS QUICK COUPLER

Запчасти Case 821G (82.100.040) - VAR - 424249, 424250, 734006, 734010, 734011 - ACS QUICK COUPLER (82) - FRONT LOADER & BUCKET

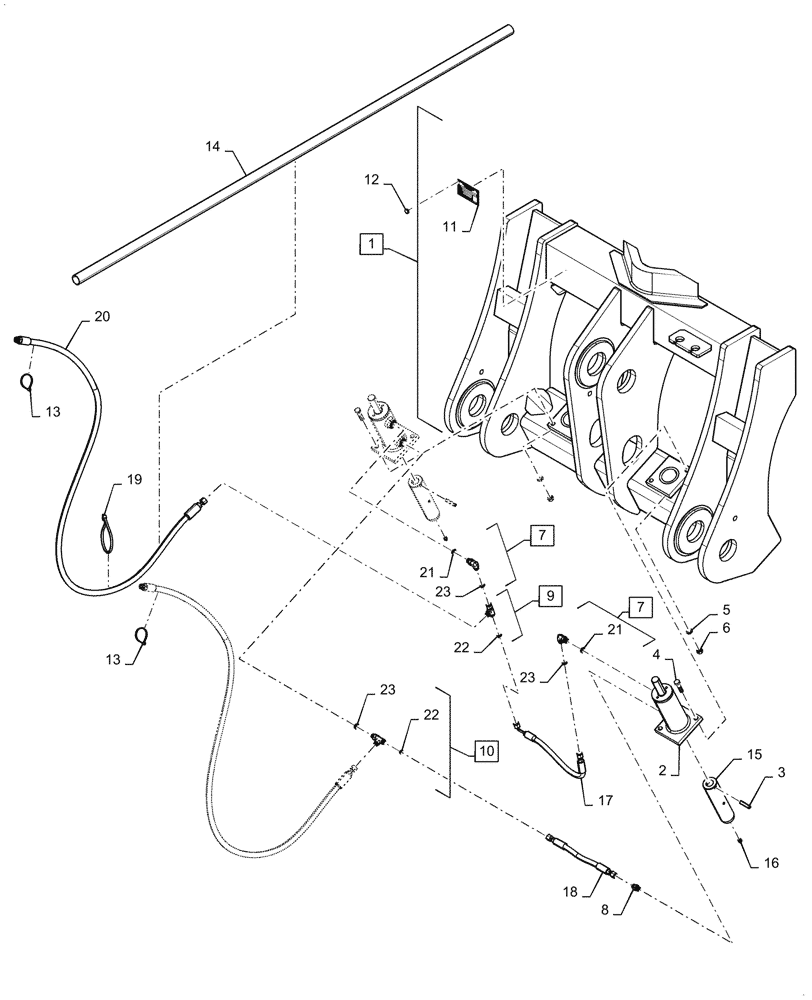

Схема запчастей Case 821G - (82.100.040) - VAR - 424249, 424250, 734006, 734010, 734011 - ACS QUICK COUPLER (82) - FRONT LOADER & BUCKET
19
15
11
18
3
23
20
22
21
21
13
9
16
1
23
7
2
4
10
8
12
7
23
22
14
6
17
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84548581

FRAME

Coupler - Z-BAR

1шт.

2

84538634

HYDRAULIC CYLINDER

2шт.

3

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

5

892-11012

LOCK WASHER,M12

4шт.

6

829-1412

NUT,M12, Cl 10.9

4шт.

7

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl, 21, 23

2шт.

8

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

9

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl, 22, 23

1шт.

10

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl, 22, 23

1шт.

11

NSS

NOT SOLD SEPARAT

Data Plate, Incl in 1

1шт.

12

87564933

PIN

4шт.

13

86566989

CABLE TIE,208mm L

4шт.

14

47112456

SLEEVE

Nylon

2шт.

15

84560963

PIN,50.8mm OD x 213.4mm L

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

84548508

HOSE ASSY.

1шт.

18

84548511

HOSE ASSY.

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

20

84577432

HOSE ASSY.

2шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.
