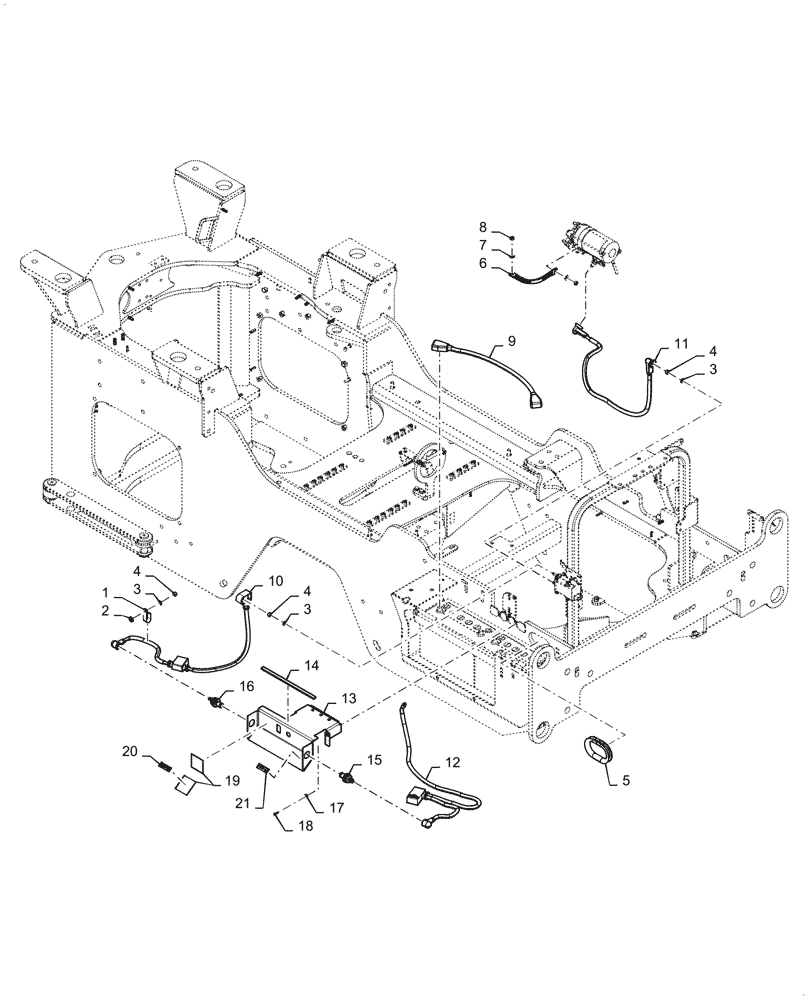

Запчасти Case 821G (55.201.030) - VAR - 726013 - BATTERY CABLES AND JUMP POSTS (55) - ELECTRICAL SYSTEMS

1

R54363

CLAMP

Double

1шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

5

47600216

CONDUIT

Battery Cables

1шт.

6

84269958

GROUND STRAP

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

3шт.

8

253347A1

NUT,Hex, M10 x 1.5

3шт.

9

84597599

CABLE,635mm L

Battery Crossover

1шт.

10

47853624

CABLE

Battery - Positive, ISO and Jump

1шт.

11

47861647

CABLE

Battery - Positive, ISOLTR to Starter

1шт.

12

47853634

CABLE

Battery - Negative, to Ground and Jump

1шт.

13

47971192

BRACKET

Hinge, Switch and Jump Post

1шт.

14

84183142

DOOR SEAL

Access RT

1шт.

15

84258928

TERMINAL CONNECTOR

Jump Start, Negative

1шт.

16

1964554C1

TERMINAL

Jump Start, Positive

1шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

18

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

19

47524286

INSULATOR

2шт.

20

84405137

DECAL

24V Positive

1шт.

21

84405148

DECAL

24V Negative

1шт.
